TYLÖ PURE 2.0

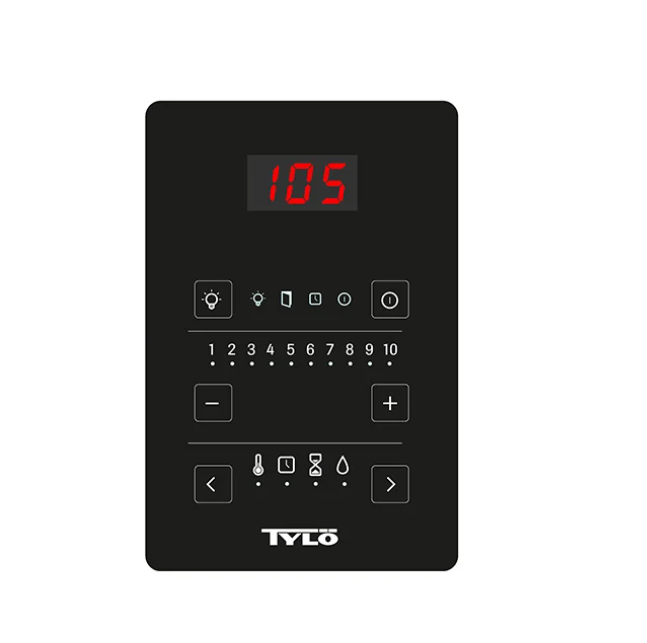

TYLÖ PURE 2.0 – Touch Control Panel for Saunas and Steam Generators

The Tylö Pure 2.0 electronic control panel is designed for convenient and modern control of Tylö electric heaters and steam generators. Its touch controls, programmable functions, and versatile installation make it an ideal solution for home and commercial saunas.

Product Features

• Compatibility:
  • Heaters: Sense Pure 6/8/10, Sense Combi Pure 6/8/10, Expression 10, Sense Commercial 6/8/10/16/20.
  • Steam Generators: Tylö Steam Home.
• Connection Requirements:
  • For Expression and Sense Commercial 6–10 kW – Commercial Lite relay box.
  • For Sense Commercial 16–20 kW – Commercial relay box.
  • For Sense Pure and Sense Combi Pure – no relay box required.
• Functions:
  • Programming of temperature, lighting, and operating time.
  • On-timer: from 0.5 hours to 1 week.
  • Preset on/off: from 1 to 10 hours.
  • Displays temperature and time.
• Installation:

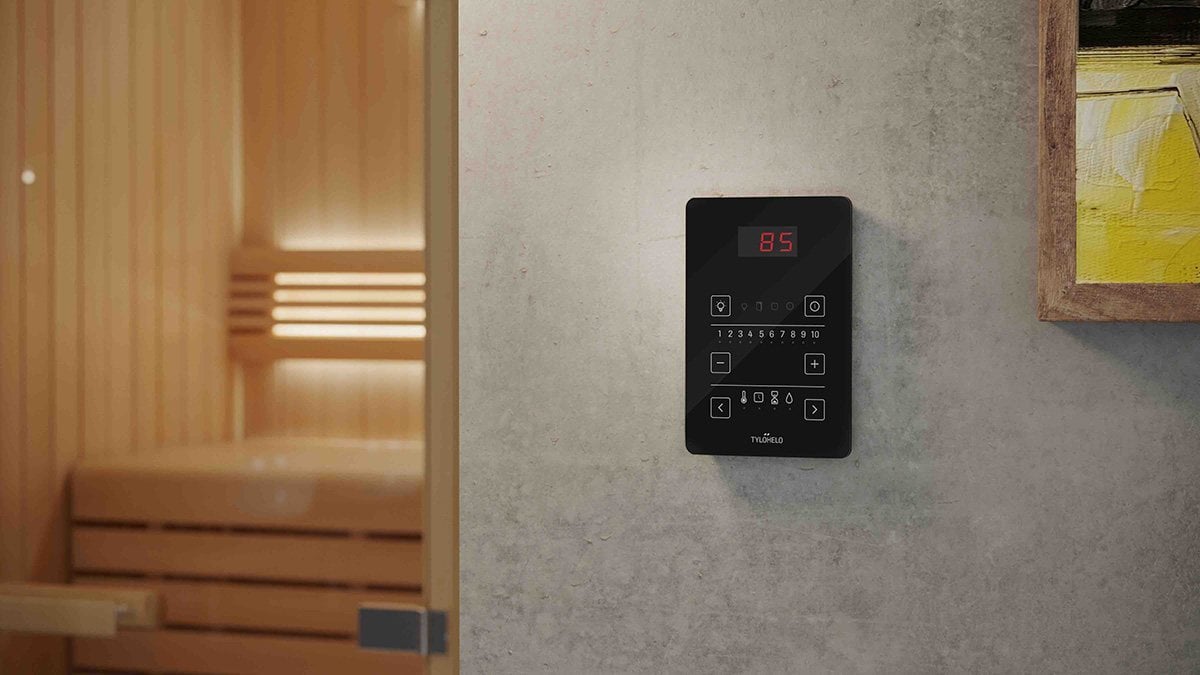

  • Can be mounted inside or outside the sauna.
  • When installed inside the sauna, the top edge of the panel must be at least 90 cm from the floor.
  • Wall mounting: bracket (included) or double-sided adhesive tape.
  • A Ø30 mm hole is required for bracket mounting.
• Technical Specifications:
  • Maximum operating time: 24 hours.
  • Temperature range: 40–110 °C.
  • Protection class: IP24.
  • Weight: 0.3 kg.
  • Dimensions: 85 × 127 × 12 mm.
  • SKU: 72001430.

Advantages

• Full control over sauna and steam generator parameters.
• Touch control with an intuitive interface.
• Flexible installation – inside or outside the steam room.
• Ability to program operating schedules.
• Compact size and modern design.

Application

Used for controlling Tylö electric heaters and steam generators. Suitable for installation in home and commercial saunas, spa, and wellness areas.

Result

With the Tylö Pure 2.0 panel, you get convenient control, scheduling capabilities, and full command over the comfort in your sauna or steam room.

Ideal for

• Premium home saunas.
• Commercial facilities and spa complexes.
• Users who value simple and modern control.
