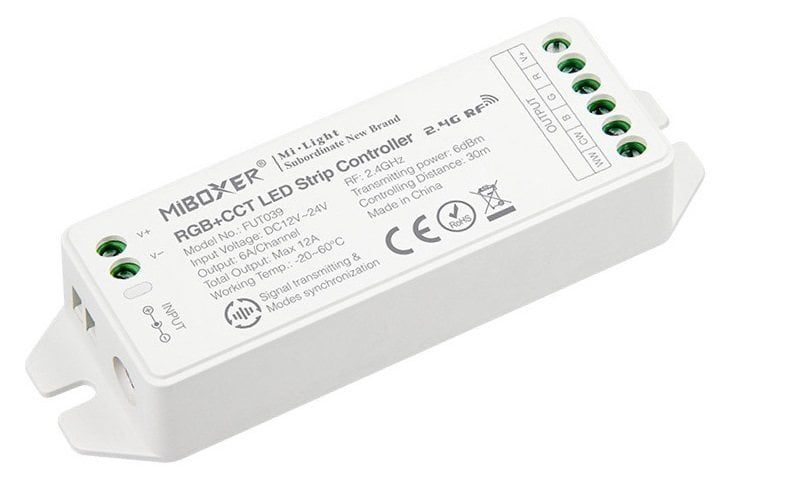

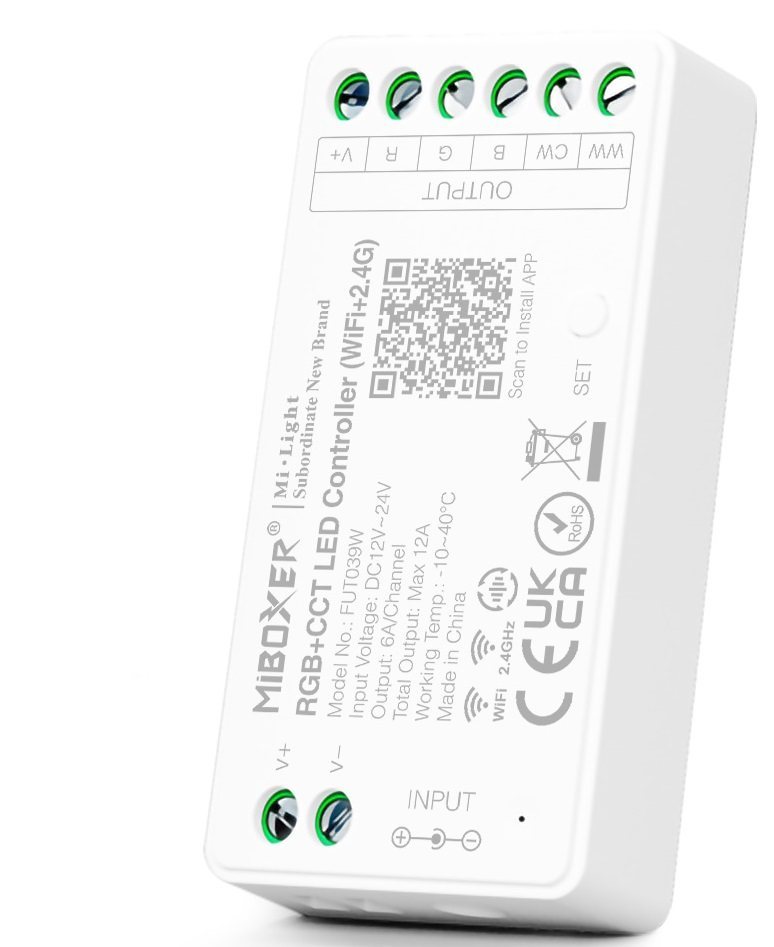

MILIGHT RGB+CCT LED CONTROLLER (WIFI+2.4G) FUT039M

MILIGHT RGB+CCT LED CONTROLLER FUT039M

The universal MiLight FUT039M controller is designed to control RGB+CCT LED strips based on 12–24V voltage. The device provides precise adjustment of color, color temperature, and brightness, forming a comfortable lighting environment in residential, commercial, and decorative spaces. The controller operates on the 2,4 GHz wireless protocol and can be integrated into existing MiLight/MiBoxer lighting systems.

Product Features

• Control of RGB strips and CCT strips via one controller
• Smooth adjustment of any RGB color gamut
• Color temperature setting: from warm to cool white
• Support for 2,4 GHz wireless control
• Control range up to 30 meters
• Synchronization of multiple controllers in one zone
• Support for remote control with MiLight/MiBoxer 2.4G series remotes
• Possibility of integration with "smart home" systems via gateway (optional)

Advantages

• One controller for full control of RGB+CCT strips
• Stable wireless signal thanks to 2.4G RF
• Support for large installations through controller synchronization
• Compatibility with a wide range of 12–24V LED strips
• Simple installation and connection
• High precision of light setting for any task

Technical Specifications

• Voltage: DC 12–24V
• Output: Max. 6A per channel
• Total Output Current: Max. 12A
• Working Temperature: -20~60°C
• Communication Protocol: 2.4GHz RF
• Control Distance: 30 m

Application

The controller is suitable for home lighting and decorative illumination, SPA spaces, saunas (when installed in a dry place), terraces, and relaxation zones. Also used in commercial interiors, showcases, LED panels, and designer installations.

Result

The system ensures flexible light control, creates the desired atmosphere, increases ease of use, and allows using RGB+CCT strips most effectively.

Ideal for

• Private houses
• Commercial premises
• Lighting designers
• LED system installers
• MiLight/MiBoxer users extending their existing lighting network
