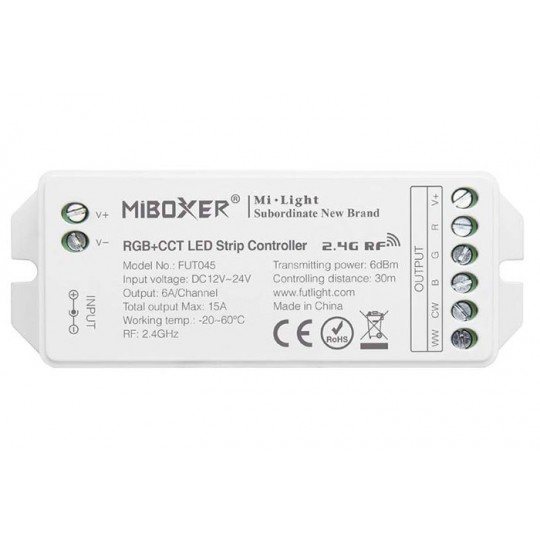

MIBOXER 4-ZONE RGB+CCT LED STRIP CONTROLLER, FUT045

MIBOXER 4-ZONE RGB+CCT LED STRIP CONTROLLER, FUT045

The Miboxer FUT045 controller is a multifunctional device for controlling RGB+CCT LED strips in four independent zones. It operates on the 2,4 GHz wireless protocol, ensures stable connection up to 30 meters, and supports smooth adjustment of color, brightness, and light temperature. The compact housing is suitable for concealed mounting and integration into any lighting systems.

Product Features:

• Compatibility: RGB, RGBW, and RGB+CCT LED strips
• Zoning: Control of 4 independent zones
• Connection: 2,4 GHz RF radio channel (transmission power 6 dBm)
• Load: 6 A per channel, total up to 10 A
• Functionality: Smooth adjustment of brightness and color temperature
• Installation: Reliable screw terminals
• Control: Support for Mi-Light / MiBoxer remotes

Advantages:

• Flexibility: control of up to 16 million colors and numerous modes.
• Stability: delay-free connection at a distance of up to 30 meters.
• Scalability: possibility of combining several controllers into a system.
• Efficiency: efficient power consumption at high power.
• Versatility: simple installation and integration into existing lighting.

Technical Specifications:

• Input voltage: DC 12–24 V
• Output current: 6 A/channel
• Total output current: max. 10 A
• Operating temperature: -20…+60°C
• Control distance: 30 m
• Transmission frequency: 2,4 GHz

Application:

Control of 12–24 V LED strips, lighting of rooms, niches, and ceilings, decorative architectural lighting. Suitable for lighting in saunas (outside hot zones), commercial lighting in offices and restaurants, as well as for light control in residential premises via MiBoxer remotes.

Result:

The controller ensures precise and smooth operation of LED strips, creating a complete system for controlling color and light temperature. It allows quickly changing the room atmosphere, creating lighting scenarios, and distributing control to four zones without additional wiring.

Ideal for:

Lighting systems with multiple zones, modern interiors with dynamic lighting, embedding in sauna and SPA projects, installation in private houses and commercial spaces, and for users requiring stable RGB+CCT control.
