HELO STEAM PURE SET OPTIMAL 3,4kW

HELO STEAM PURE SET OPTIMAL 3,4 kW — ready-made set for hammam

The HELO Steam Pure Optimal 3,4 kW is a fully equipped solution for a small home steam cabin. The set includes a steam generator, PURE 2.0 touch control panel, automatic drainage, aroma pump, and all necessary connecting elements for professional installation. The model is designed for private use and is built on the modern TylöHelo technological platform, ensuring stable operation, economical water and electricity consumption, and a high level of safety.

Description

The steam generator with a power of 3,4 kW is designed for steam rooms with a volume of 2–6 m³. It quickly creates soft, uniform steam with an output of up to 5 kg/h, maintaining a comfortable humid atmosphere without sudden temperature changes. The housing is compact and designed for installation in a technical room. The system is equipped with a low energy consumption mode in standby, making operation economical. The generator has two additional outputs for salt and fragrances, allowing the integration of aromatherapy and salt inhalation procedures.

Product Features

• Comprehensive solution: full set of components for "turnkey" installation.
• Economy: low resource consumption and standby mode.
• Functionality: support for aromatherapy and salt procedures.
• Reliability: modern TylöHelo platform.

PURE 2.0 Control Panel

The modern touch panel ensures convenient control. Functionality includes:

• Delayed start.
• Operation timer.
• Precise temperature setting.
• Lighting control.
• Intuitive interface.

Important: The PURE panel must not be installed inside the steam room.

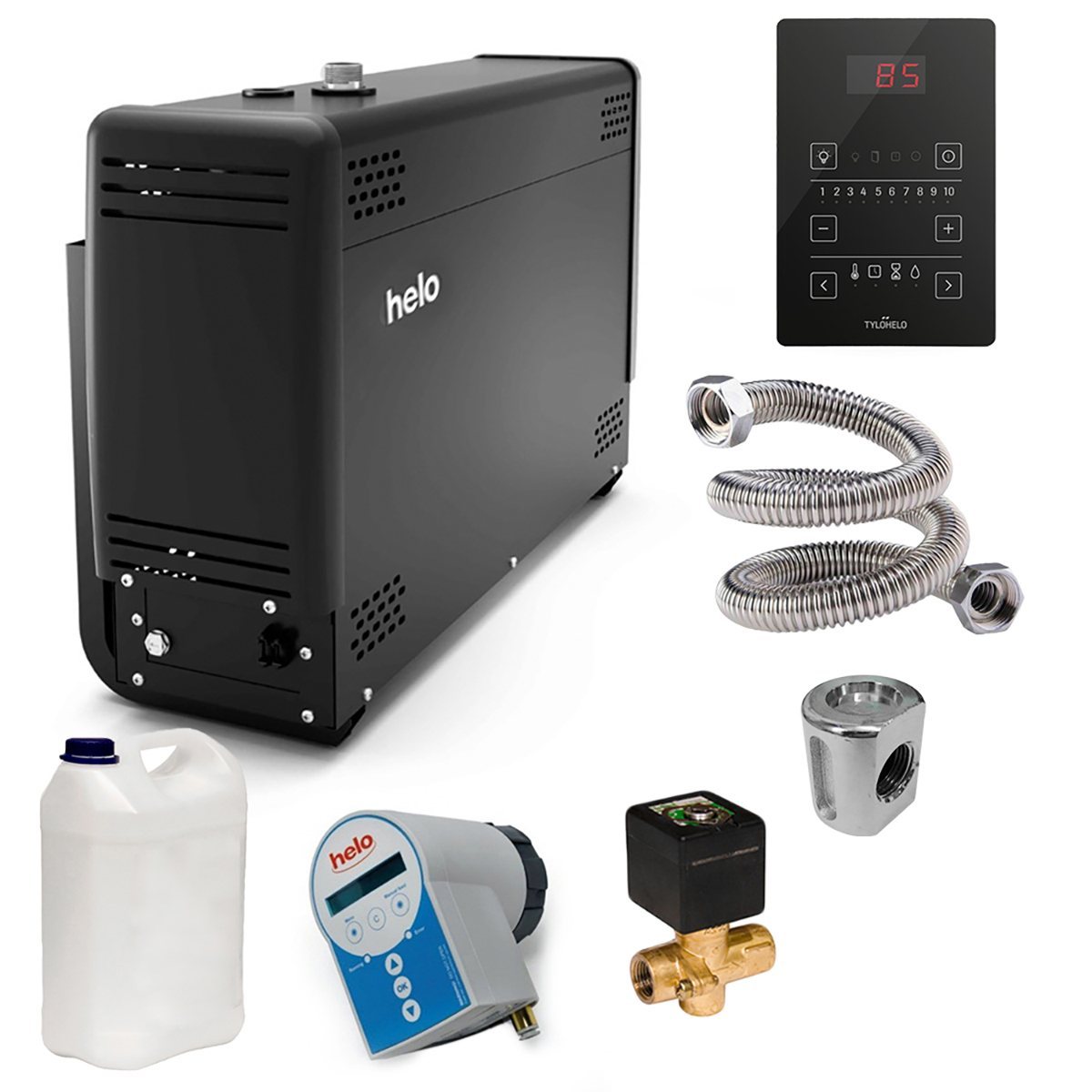

Scope of Delivery

• Steam generator HELO STEAM (002100)
• Touch control panel TYLÖHELO PURE 2.0 (72001420)
• Control cable (generator → panel)
• Temperature sensor
• Sensor cable (panel → sensor)
• Automatic drain valve (7819516)
• Steam nozzle (7819604)
• Stainless steel corrugated pipe DN15 ¾ – 1,5 m
• Stainless steel corrugated pipe DN15 ¾ – 2,0 m
• Pump for Helo fragrances and Eucalyptus fragrance (5 l)
• Installation and operating manual
