HELO STEAM PRO PURE SET OPTIMAL 9,5kW

HELO STEAM PRO PURE SET OPTIMAL 9,5 kW — extended set for professional steam

The HELO Steam Pro Pure Optimal 9,5 kW is a powerful set for medium and large steam rooms, combining a productive PRO series steam generator and the modern PURE touch control panel. The solution is designed for private SPA zones and intensive home use. The 9,5 kW model ensures stable performance up to 13 kg of steam per hour and is designed for steam rooms with a volume of 9–17 m³.

Description

The Steam Pro series is designed with a focus on safety, reliability, and economy. The generator automatically prevents overheating and dry running during water supply interruptions. The automatic filling function reduces maintenance time and increases operation stability. The design provides two outputs for salt and fragrances, allowing the integration of aromatherapy and salt procedures into the standard operating mode. The housing is made in a compact industrial format, convenient for placement in a technical room next to the steam room.

Product Features

• Safety: automatic protection against overheating and operation without water.
• Maintenance convenience: automatic tank filling function.
• SPA capabilities: two outputs for connecting aroma and salt pumps.
• Compactness: industrial housing, convenient for installation.
• Efficiency: two steam nozzles for better steam distribution.

HELO PURE Control Panel

The modern touch panel provides full control over the climate. Functionality includes:

• Delayed start.
• Operation timer.
• Precise temperature adjustment.
• Lighting control.
• Intuitive menu.

Important: The Pure panel must be installed strictly outside the steam room.

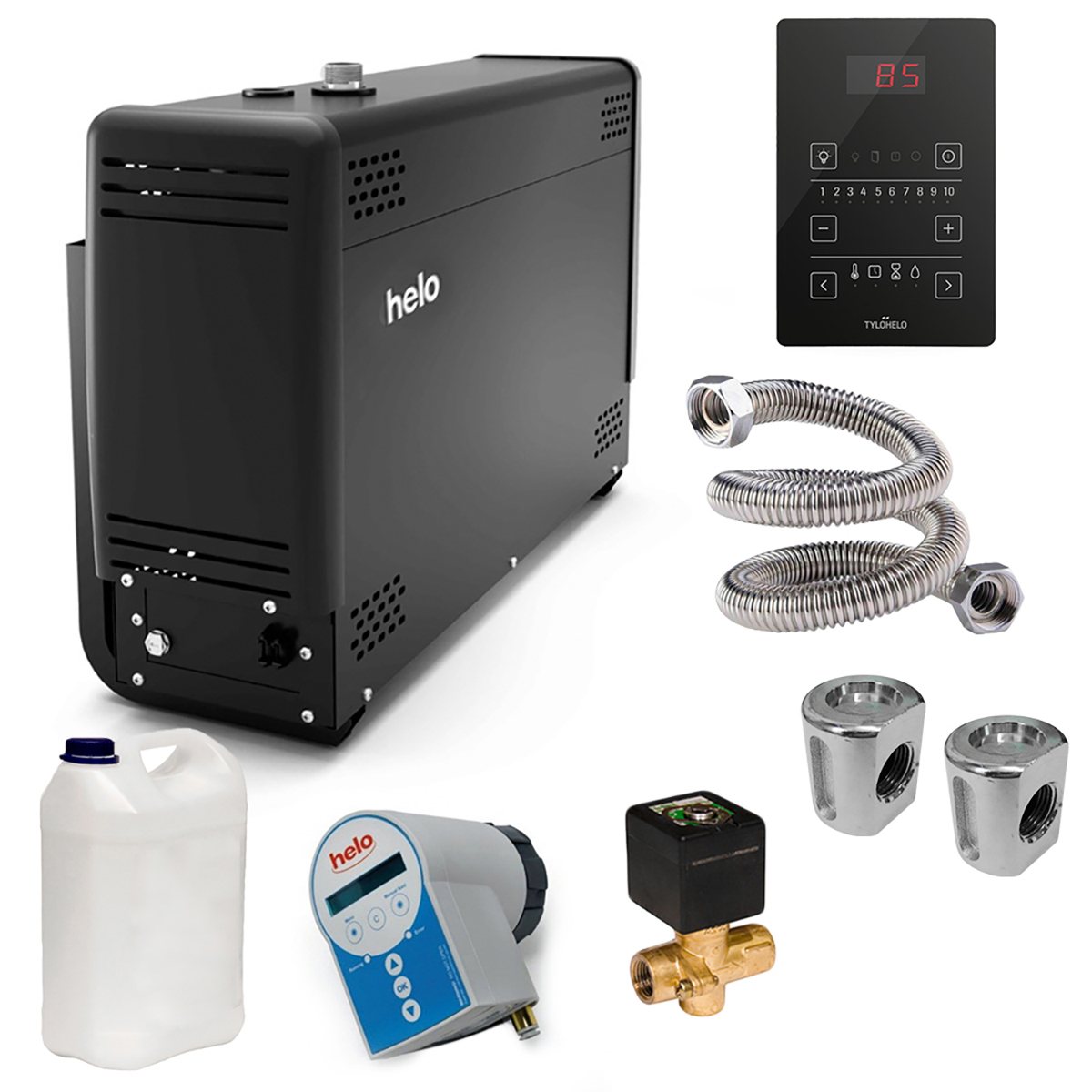

Scope of Delivery

• Steam generator HELO STEAM PRO (002104)
• Touch control panel HELO PURE (72001420)
• Control cable (generator → panel)
• Temperature sensor
• Sensor cable (panel → sensor)
• Automatic drain valve (7819516)
• 2 × Steam nozzle (7819604)
• 1 × 1,5 m corrugated pipe DN15 ¾ (stainless steel)
• 1 × 2,0 m corrugated pipe DN15 ¾ (stainless steel)
• Pump for Helo fragrances and Eucalyptus fragrance (5 l)
• Installation and operating manual
