HARVIA XENIO CX110C COMBI

CONTROL UNIT HARVIA XENIO CX110C COMBI

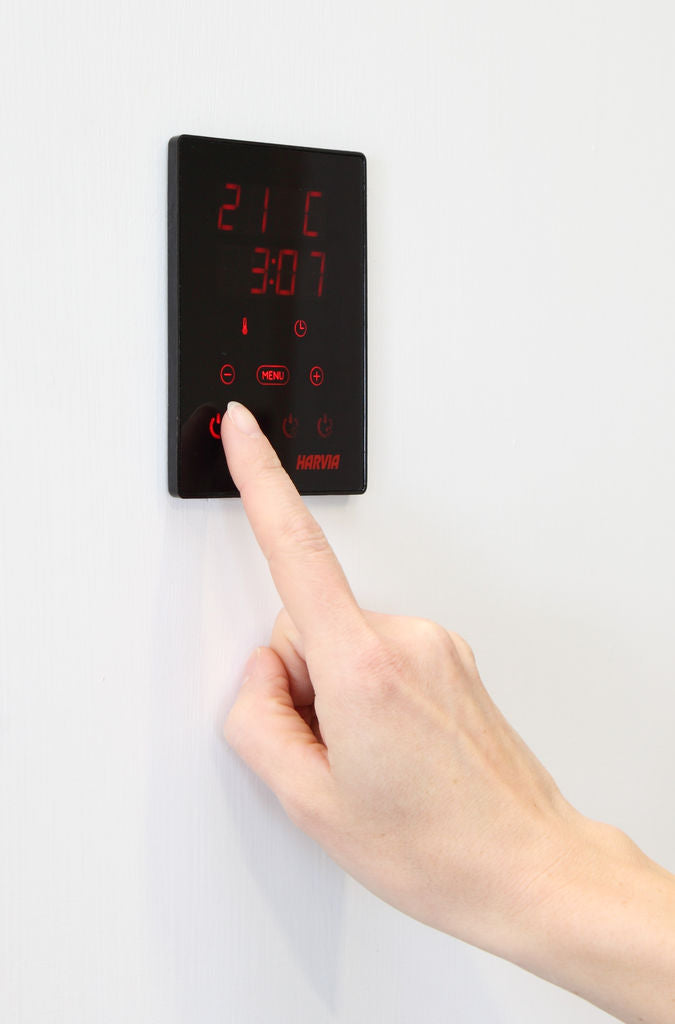

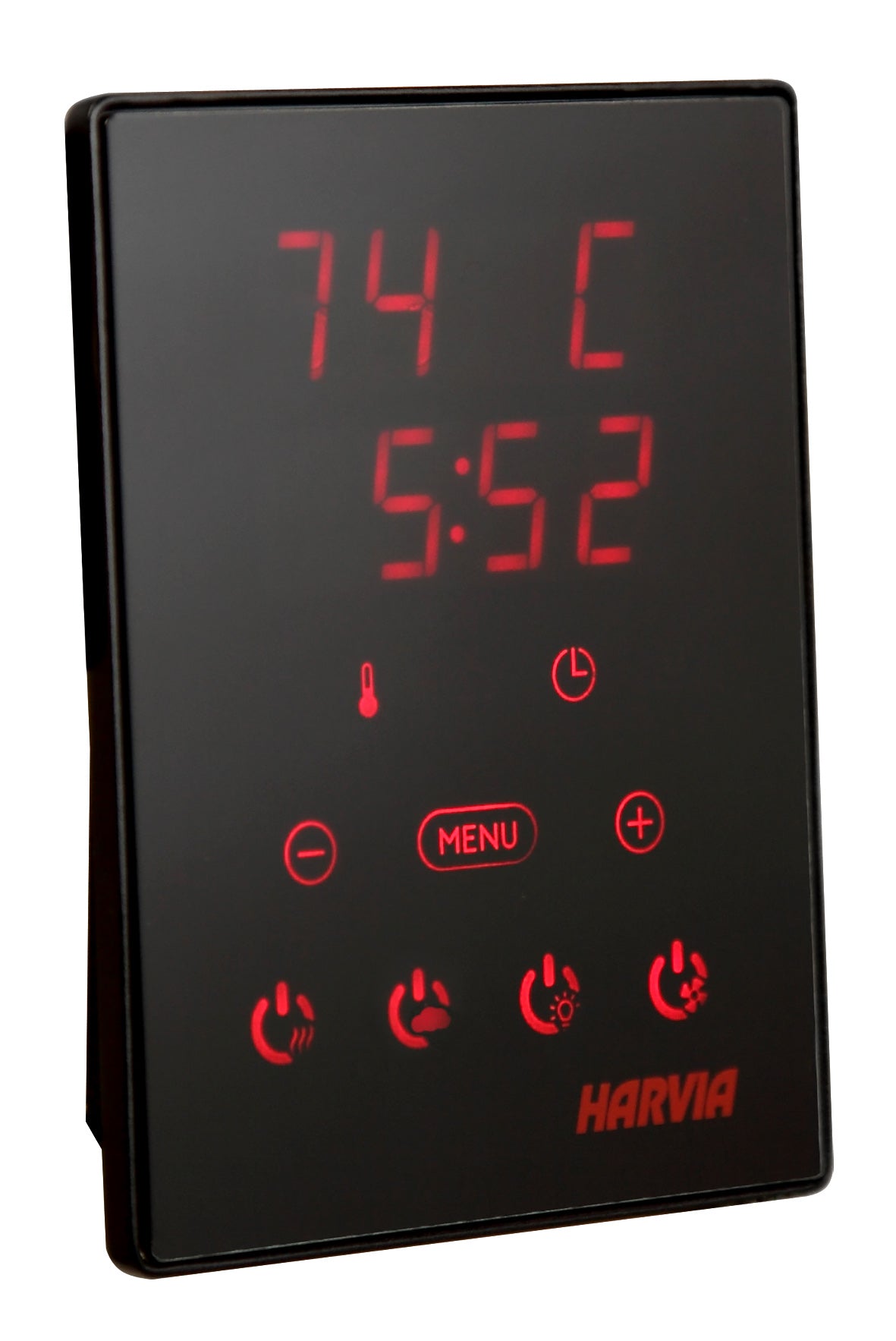

Harvia Xenio CX110C Combi is a touch-screen control unit designed specifically for saunas with a steamer and Combi heaters, where precise control of both temperature and humidity is essential. The unit combines a modern minimalist design with an intuitive interface and advanced microclimate management features. The compact glass panel with bright red LED indication displays current temperature, operating time, and active modes. Control is straightforward via touch buttons and a logical menu.

Product Features

• Control of electric heater, steamer, and Combi heater
• Temperature adjustment: 40–110 °C
• Humidity adjustment: 20–95 % rH
• Operating timer: private saunas 1–6 hours, public saunas 1–12 hours
• Delayed start function: 0–12 hours
• Lighting and ventilation control
• Touch control with MENU and + / − buttons
• High-contrast LED display for easy parameter reading
• Surface or flush-mounted panel installation

Advantages

• Full control of temperature and humidity in the sauna from one panel
• Support for Combi heaters and separate steamers
• Power scalability up to 28 kW with an additional power unit
• Management of lighting and ventilation for the perfect atmosphere
• Modern design suitable for premium interiors
• Ease of use without the need for complex settings

Technical Specifications

• Power supply: 400 V 3N~
• Maximum power: heater up to 11 kW, with steamer up to 17 kW (up to 28 kW with LTY17C)
• Lighting and fan control: up to 100 W, 230 V 1N~ each
• Control panel dimensions: 85 × 24 × 110 mm

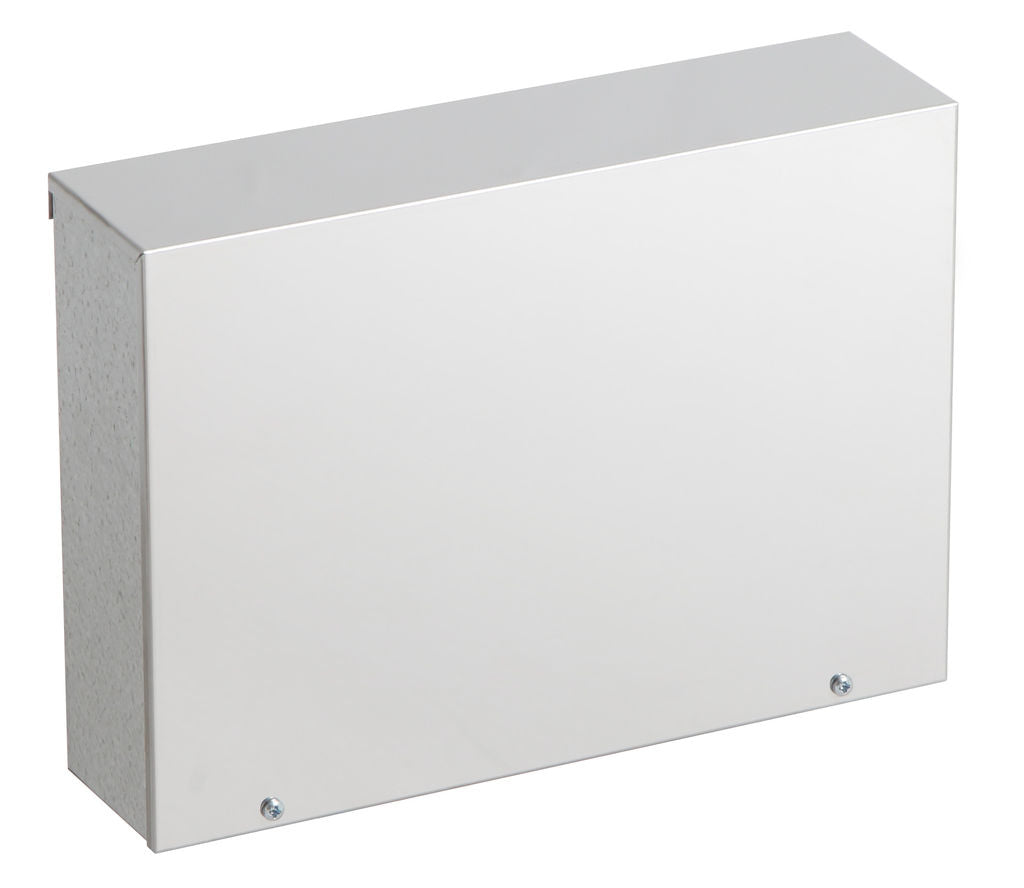

• Power unit dimensions: 272 × 70 × 193 mm
• Temperature sensor: WX232 with overheat protection (NTC 22 kΩ)
• Humidity sensor: WX325 for relative humidity measurement
• Control cable: 5 m (extendable up to 30 m)
• Set includes: panel, power unit, sensors with 4 m cables, manual

Application

The Harvia Xenio CX110C Combi control unit is suitable for home and commercial saunas with a steam function. It is ideal for projects requiring precise control of humidity and microclimate. The panel can be installed directly inside the sauna (no higher than 1 meter) or in a living area such as a dressing room or relaxation zone.

Result

With Harvia Xenio CX110C Combi, you achieve a stable and repeatable sauna climate — from dry Finnish heat to soft wet steam. Management becomes predictable and convenient, ensuring every session is at the same comfortable level.

Ideal for

• Owners of Combi heaters or separate steamers
• Projects where precise humidity regulation is a priority
• Managing powerful heaters and ventilation from a single point
• Connoisseurs of neat flush-mounted solutions with modern design
