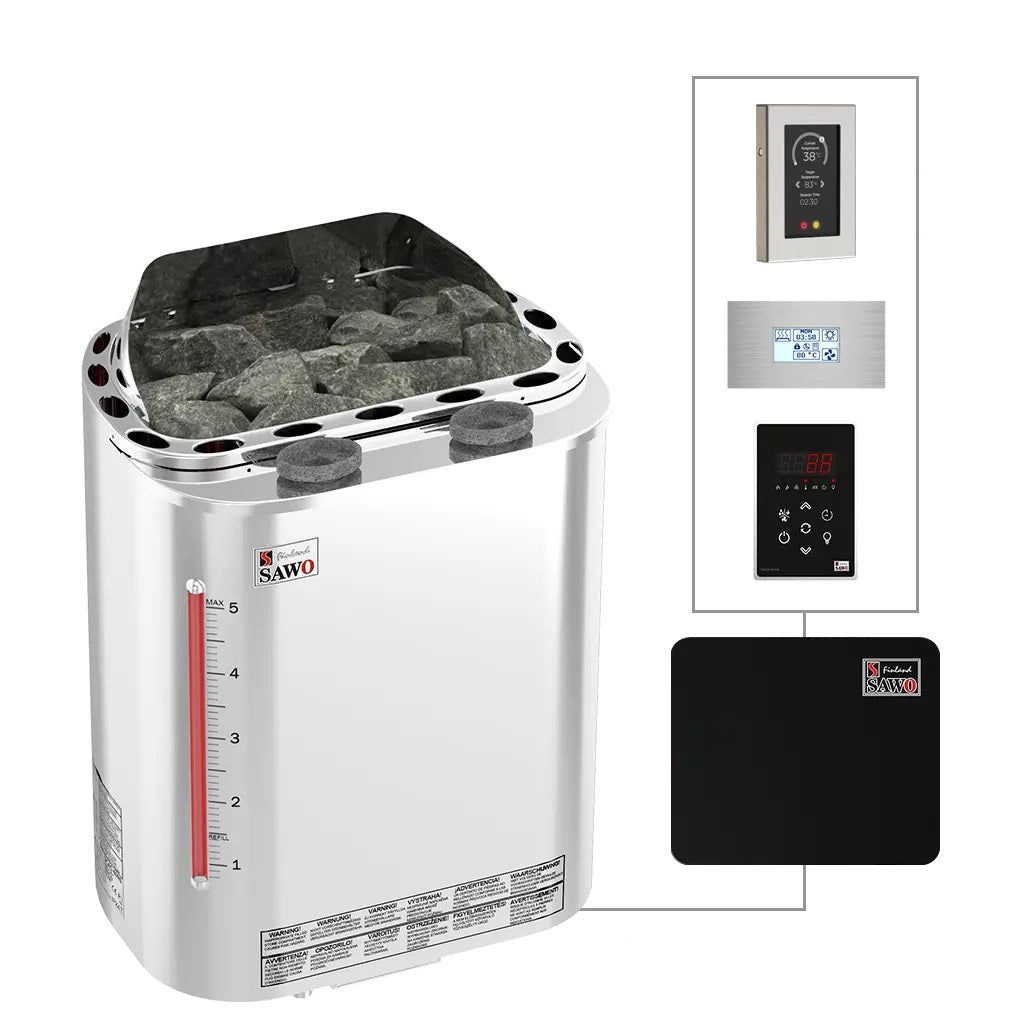

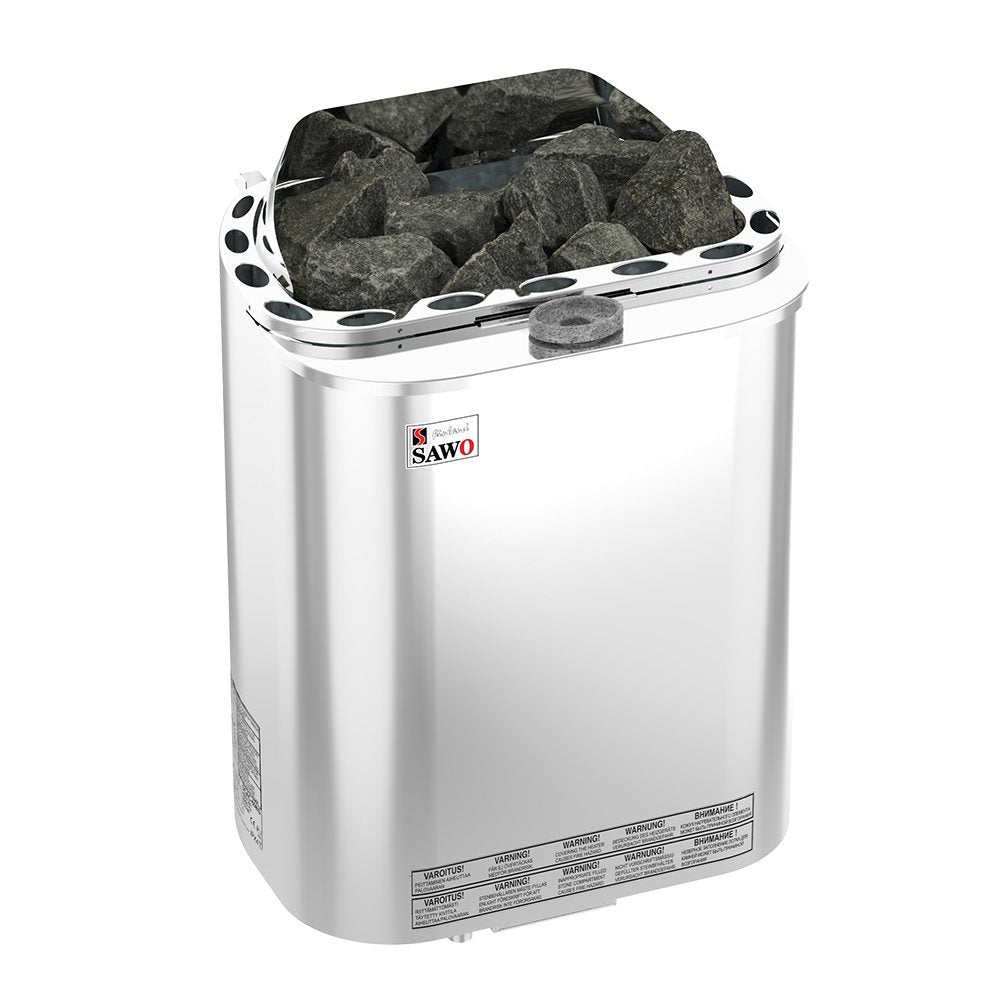

ELECTRIC SAUNA HEATER SAWOTEC SCANDIA COMBI TRENDLINE SCAC-60NS-Z, 6,0kW, WITHOUT CONTROL UNIT

ELECTRIC SAUNA HEATER SAWO SCANDIA COMBI TRENDLINE SCAC-60NS-Z (6,0 KW)

SAWO Scandia Combi Trendline is a reliable wall-mounted electric heater with a power of 6,0 kW, designed for small home saunas with a volume of 5 to 9 m³. This Trendline series model is equipped with a built-in steam generator, turning your sauna room into a versatile spa: you can enjoy both the dry heat of a Finnish sauna and the soft steam characteristic of a steam bath. The inner tank and key elements are made of stainless steel, while the casing features a stylish protective finish.

Product Features

• Built-in steam generator with a 5-liter tank.
• Trendline series: Practical design with one scent basin.
• Water tank and internal components made of stainless steel.
• Patented water level control system (prevents overheating).
• Soapstone basin for liquid fragrances (Scent Basin).
• Heating element design allows easy cleaning of the tank.

Advantages

• Versatility: Two bathing modes (dry/wet) in one heater.
• Safety: Smart electronics monitor the water level in the tank.
• Compactness: Wall mounting frees up space in a small sauna.
• Aromatherapy: Special stone basin for using oils.
• Cost-efficiency: Optimal solution for small family saunas.

Technical Specifications

• Power: 6,0 kW.
• Sauna room volume: 5–9 m³.
• Dimensions (H x W x D): 600 x 410 x 365 mm.
• Water tank volume: 5 l.
• Stone capacity: max 20 kg.
• Power supply: 400V 3N~.
• Fuse: 3 x 10 A.
• Cable cross-section: 5 x 2,5 mm².

Compatible Control Units

An external control unit supporting the Combi function (control of both heater and steamer) is required. A wide range of models is compatible:

• SAWO Innova 2.0 Series: Classic (INC-S), Touch (INT-S), Stainless Steel Touch.
• SAWO Saunova 2.0 Series: Requires interface and compatible Combi power controller.
• Other Brands: Harvia Xenio Combi, Harvia Xafir Combi, and other units for Combi heaters up to 9 kW.

Application

The heater is mounted on the wall observing safety distances (minimum 50 mm from side walls). The tank is filled with water manually before the session. Temperature and humidity adjustments are made via the external control panel.

Result

The ability to choose between invigorating high temperature and relaxing wet steam in a compact home sauna.

Ideal for

• Small family saunas (5–9 m³).
• Lovers of soft wet steam.
• Those looking for a functional solution at a reasonable price (Trendline).
• Users of aromatic oils.

Stones are not included
