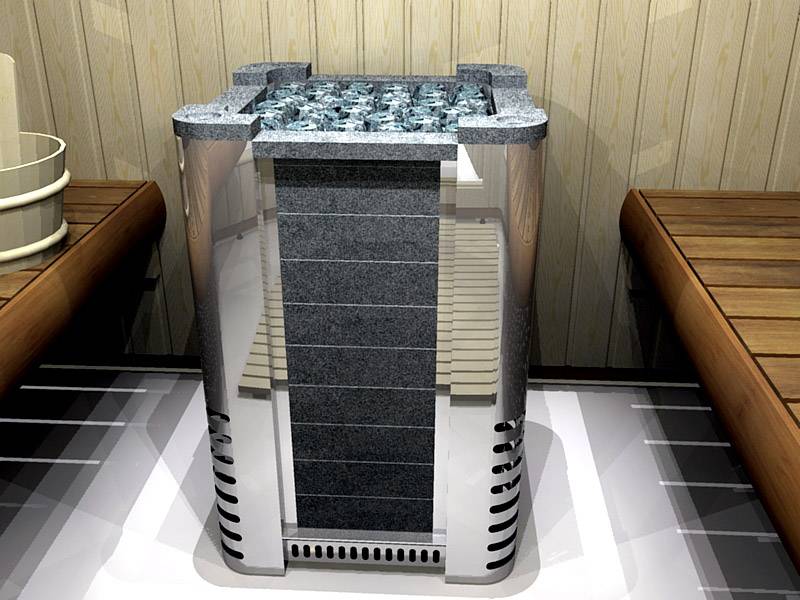

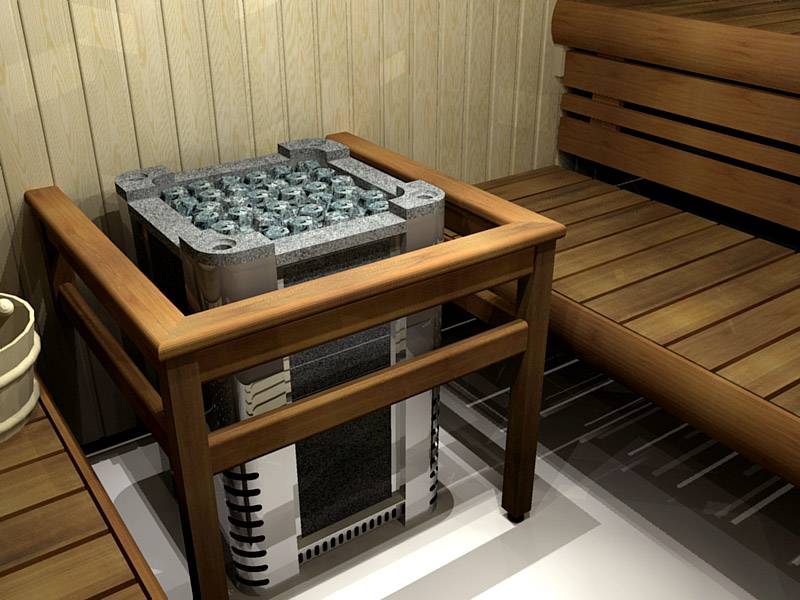

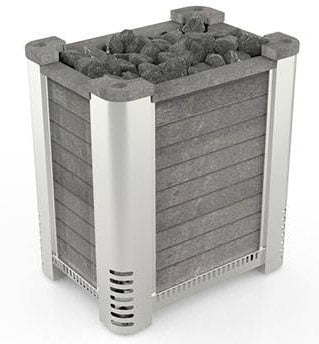

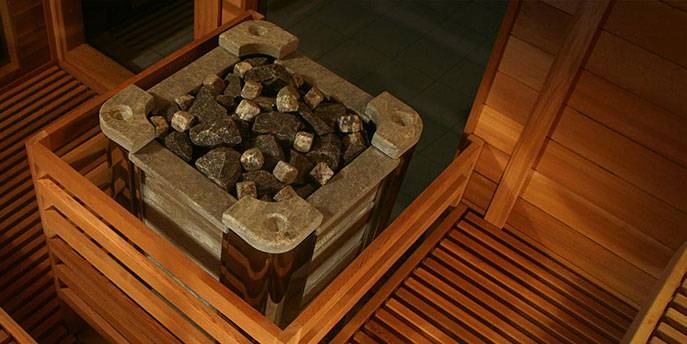

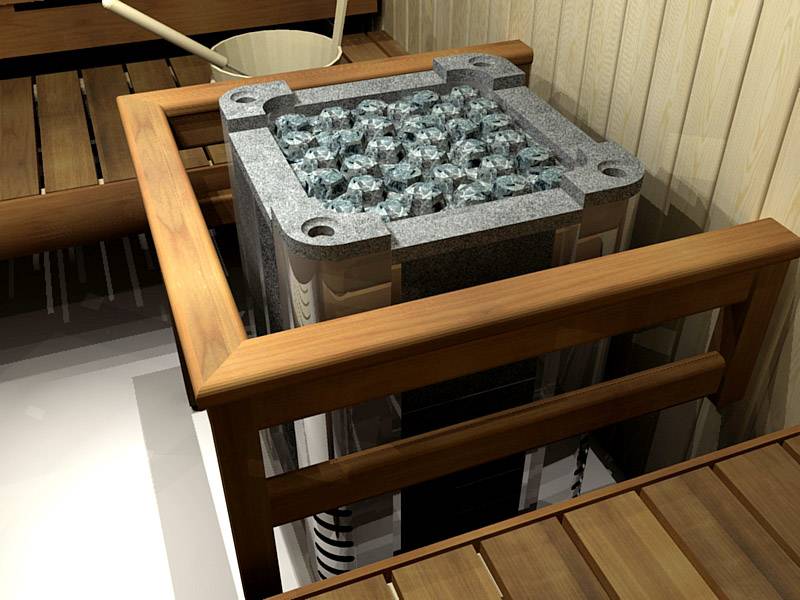

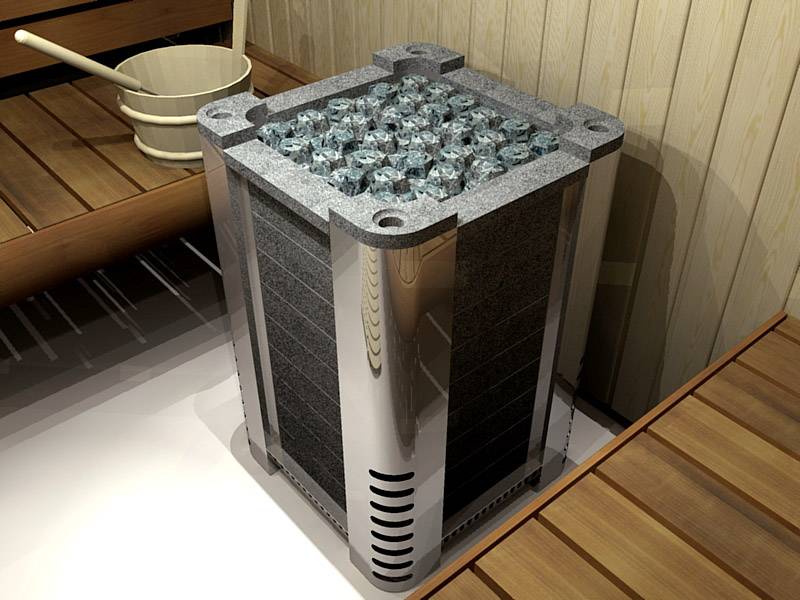

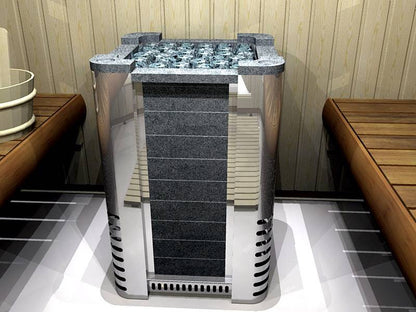

ELECTRIC SAUNA HEATER SAWO ALTOSTRATUS ALTO-180NS-P 18,0kW, WITHOUT CONTROL UNIT
ELECTRIC SAUNA HEATER SAWO ALTOSTRATUS ALTO-180NS-P 18,0kW, WITHOUT CONTROL UNIT
🔄 Free Returns – 30-Day Window (Sale Items Final)
🥇 All Products Comprehensive Warranty
🔒 Secure Checkout – SSL Encrypted
💳 0% Finance Available*
The SAWO Altostratus ALTO-180NS-P is an 18.0 kW floor-mounted electric sauna heater built for the most demanding applications — large private saunas, hotel SPA facilities, fitness clubs, and public bathing spaces of 18 to 30 m³. At the heart of its performance is a premium combination of high-grade stainless steel casing and soapstone elements — a natural material renowned for its exceptional heat capacity and ability to retain warmth long after the heating cycle ends.
The massive stone frame, accepting up to 100 kg of stones, creates a dense, uniform thermal mass that delivers consistently soft and saturated steam with each water infusion. After the sauna session, the accumulated heat in the soapstone elements accelerates room drying — a practical benefit for commercial operations. Aroma cups at the corners add aromatherapy capability, and the adjustable feet ensure stable, level installation on any surface.
A separate control unit is required (not included). Compatible units include the SAWO Innova Series, Trend, or equivalent high-power controllers.
Specifications
| Model Code | ALTO-180NS-V12-P |
| Power | 18.0 kW |
| Sauna Volume | 18 – 30 m³ |
| Dimensions (H × W × D) | 710 × 780 × 460 mm |
| Weight (without stones) | 120 kg |
| Maximum Stone Load | 100 kg |
| Safety Distance (ceiling / sides) | 1200 / 150 mm |
| Power Supply | 400 V 3N |
| Fuse | 3 × 16 A |
| Cable Cross-Section | 5 × 2.5 mm² |
| Body Material | High-grade stainless steel |
| Special Features | Soapstone elements, aroma cups, adjustable feet |
| Control Unit | Separate unit required (SAWO Innova / Trend or equivalent) |
What's Included
- SAWO Altostratus ALTO-180NS-P heater unit
- Soapstone elements (integrated)
- Aroma cups
- Adjustable feet
Note: Sauna stones and control unit are not included.
Installation
- Position the heater on a non-combustible, level floor surface in the sauna room.
- Use the adjustable feet to ensure a stable, level installation.
- Maintain safety clearances: 1200 mm to ceiling, 150 mm to side walls.
- Connect to a 400 V 3N supply using 5 × 2.5 mm² cable, 3 × 16 A fused. Use only a qualified electrician.
- Connect a compatible SAWO Innova or Trend control unit per the manufacturer's wiring diagram.
- Load sauna stones (up to 100 kg) before first use. Read the full user manual before commissioning.
🔒 Warranty
The SAWO Altostratus is covered by SAWO's standard manufacturer warranty. Installation must be performed by a qualified electrician in compliance with local regulations. Contact us for warranty queries.
Get User Manual
The SAWO Altostratus ALTO-180NS-P user manual is available from SAWO. It contains full electrical specifications, installation diagrams, and safety requirements. Always have installation carried out by a certified electrician.
What makes soapstone special for a sauna heater?
Soapstone (talc-chlorite) has an exceptionally high specific heat capacity — it absorbs and retains heat more effectively than most other materials. This means the stones stay hot for longer after the heating cycle, delivering sustained steam and helping the sauna room dry out quickly after the session ends.
Is a control unit included?
No — a separate control unit is required. Compatible units include the SAWO Innova Series and SAWO Trend controllers. Choosing a control unit separately allows you to match the functionality to your specific installation requirements.
Are sauna stones included?
No. Sauna stones (up to 100 kg) must be purchased separately. Use only stones rated for electric sauna heaters to ensure safe and efficient operation.
Is this heater suitable for commercial use?
Yes — the 18 kW output, 100 kg stone capacity, and soapstone heat retention make the Altostratus ideal for intensive commercial environments including hotel spas, fitness facilities, and public saunas up to 30 m³.
What are the aroma cups used for?
The aroma cups at the corners of the heater hold essential oils or aromatic compounds, which release fragrance as they warm — allowing you to enhance your sauna session with aromatherapy without pouring oils directly onto the stones.
Delivery: This item is dispatched from our UK warehouse. At 120 kg (without stones), delivery is via specialist freight/pallet courier. You will be contacted to confirm a delivery window. Estimated lead time is 3–7 working days.
Returns: Returns accepted within 30 days of receipt for unused, uninstalled items in original packaging. Electrical items must be unconnected to qualify for return. Report damage within 48 hours with photographs for prompt resolution.
