ELECTRIC SAUNA HEATER HARVIA CILINDRO PC90E, 9,0kW, WITHOUT CONTROL UNIT, STEEL

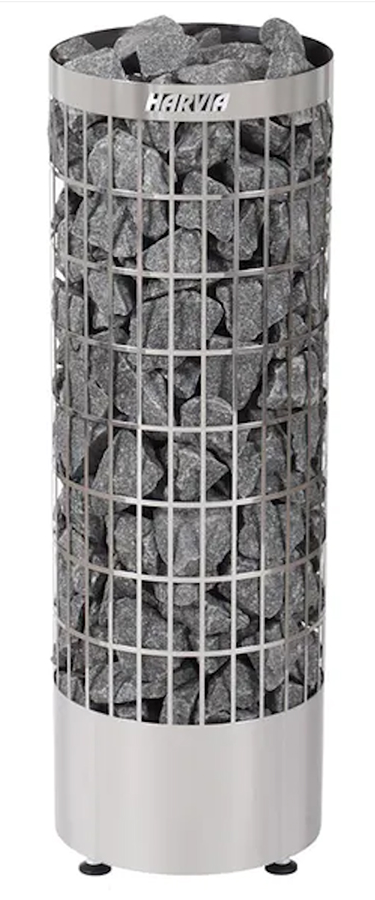

Harvia Cilindro PC90E is a floor-mounted electric heater in the form of a tall column with an open stone space. This design is created for those who appreciate the classic Finnish water delivery onto stones and want to get soft, voluminous steam without overheating the air. Due to the grate body, the stones remain as open as possible, and the heater itself becomes an expressive element of the interior — it is often placed in a prominent spot or neatly integrated into the lower level of the benches.

Product Features

• Power 9,0 kW — a reliable reserve for medium and large sized saunas.
• Form factor: tall cylindrical column for uniform thermal output across the height.

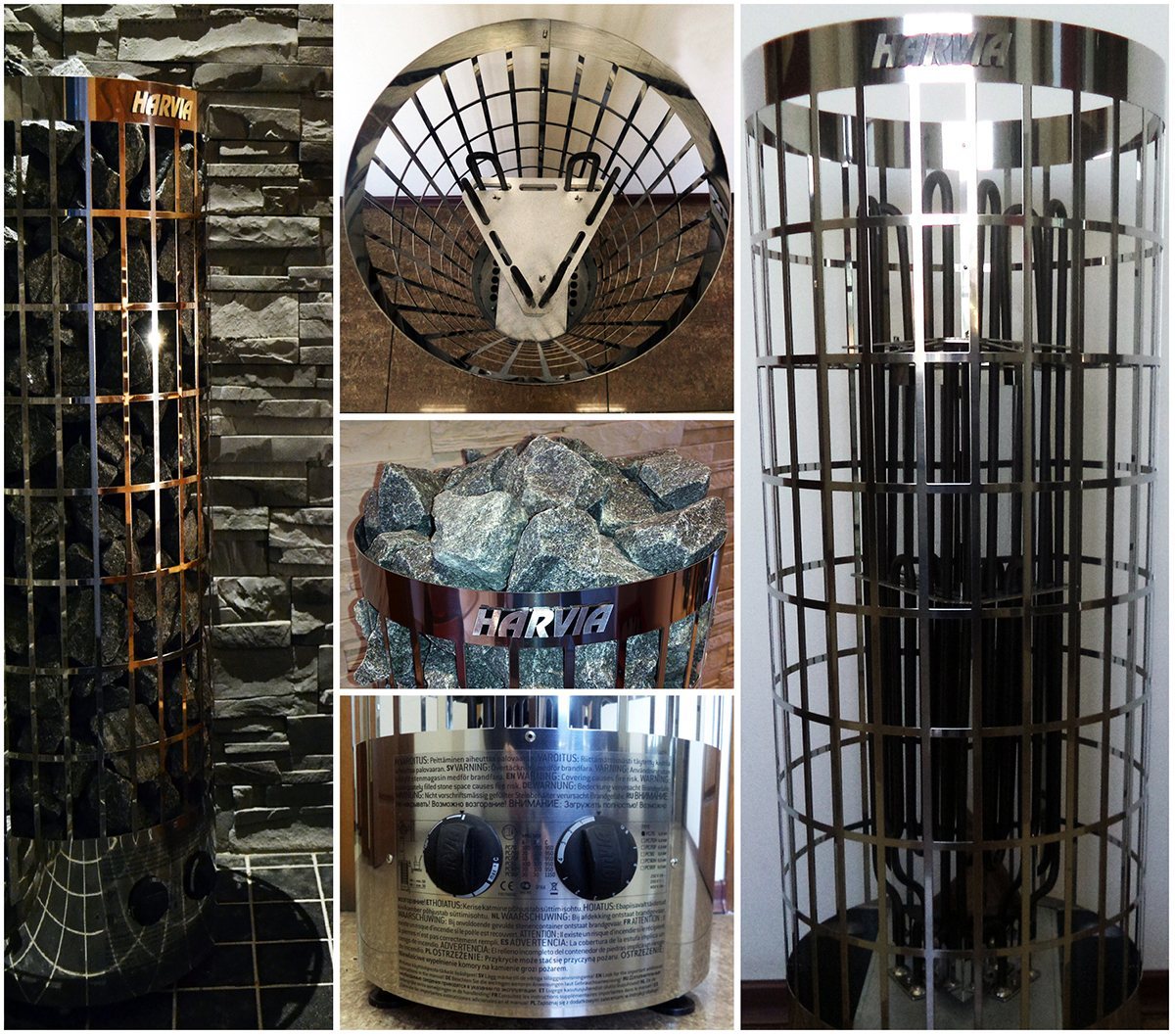

• Body: stainless steel grate provides maximum openness of the stones.
• Stone load up to 90 kg for creating live and dense steam.

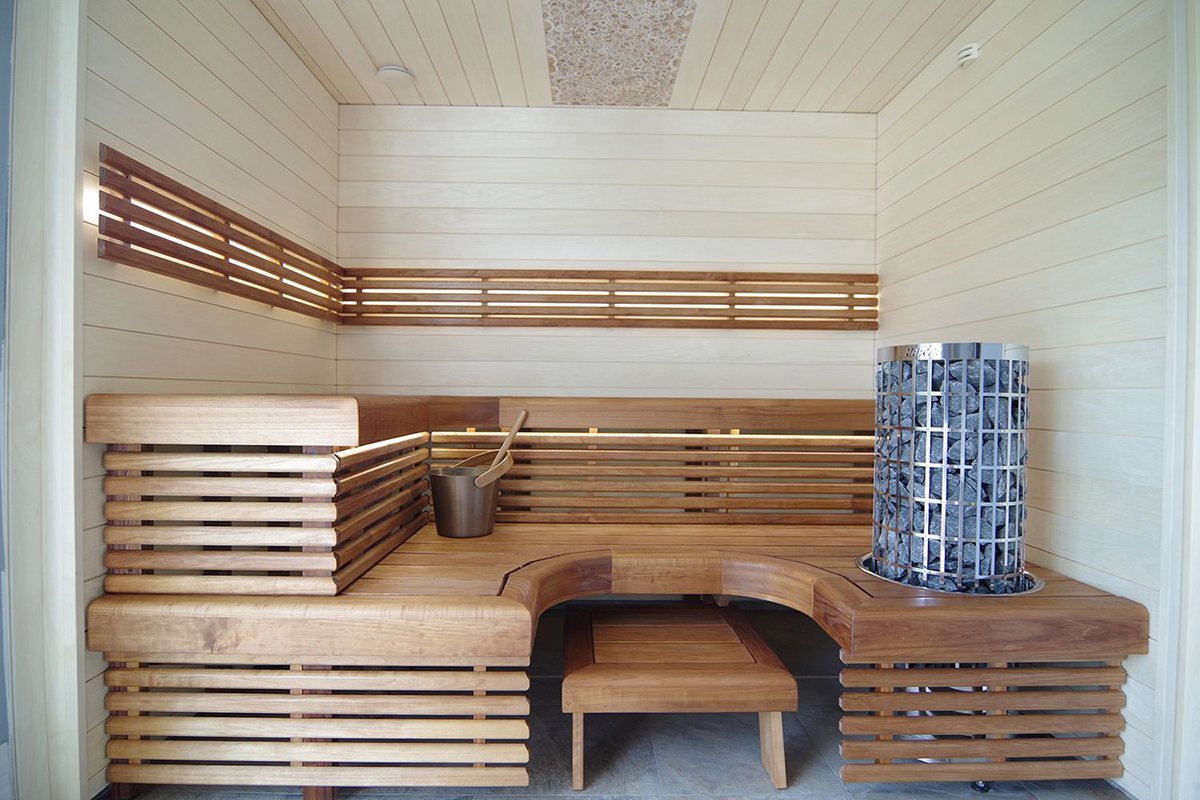

• Possibility of integration into the bench using the special PC1 flange.
• Requires connection of an external control unit for precise parameter setting.

Advantages

• Soft steam and comfortable heat: the large mass of stones smooths the heating and makes the water delivery more velvety.
• Maximum efficiency: the grate body allows steam to be obtained across the entire surface of the stone column.
• Control freedom: a separate remote control allows moving the settings outside the sauna room.
• Designer look: the tall column looks impressive in modern interiors and projects with glass walls.

Technical Specifications

• Power: 9,0 kW
• Sauna volume: 8–14 m³
• Stone weight: 90 kg
• Dimensions: 320 × 320 × 930 mm
• Minimum sauna height: 190 cm
• Power supply: 400V 3N / 230V 1N
• Fuse: 3 × 16 A / 1 × 40 A
• Compatible control units: Harvia C170VKK, CS110, CS170, C150, CX110, CX170, CF9
