CONTROL UNIT HARVIA XENIO CX170

Harvia Xenio CX170 is a touch-control unit for saunas with a modern glass design and bright LED indication. It is designed for convenient control of the "heart" of the sauna: traditional electric heaters, Combi heaters with a steamer, and infrared radiators. The interface is intuitive: large digits show the current temperature and time, while separate icons help to quickly switch between main functions. The control is designed so that the user immediately sees when the sauna has reached a comfortable mode.

Product Features

• Heater power range: 2,3–17 kW
• Temperature adjustment: 40–110 °C
• Operating time adjustment: family saunas (1–6 hours), public saunas (1–12 hours)
• Delayed start function: 0–12 hours
• Lighting and fan control for microclimate management

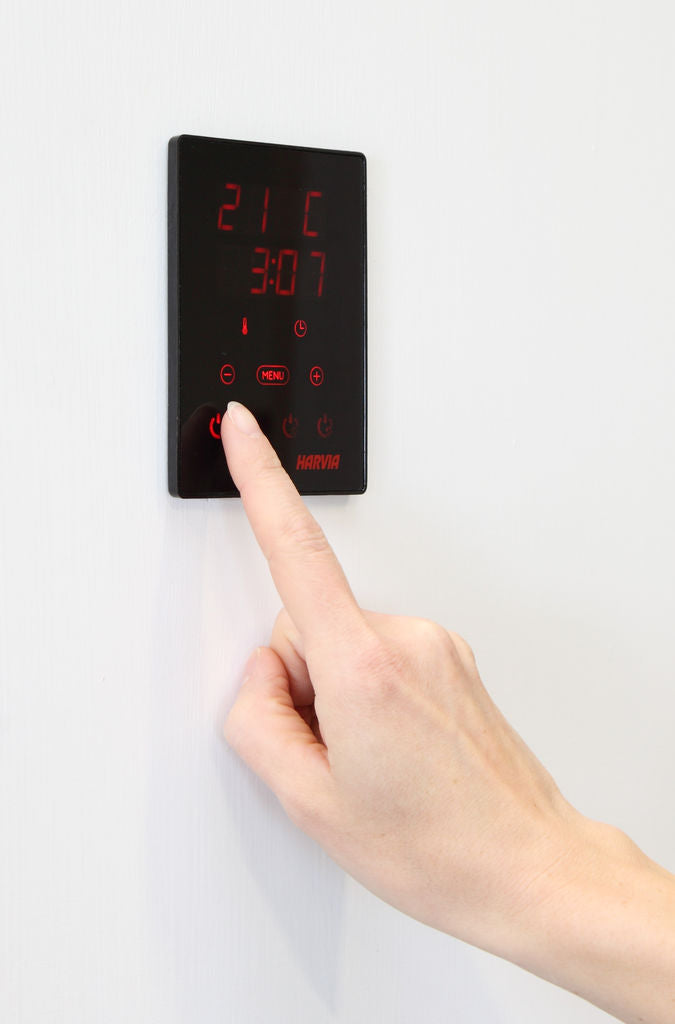

• Touch panel with logical control and quick setting buttons

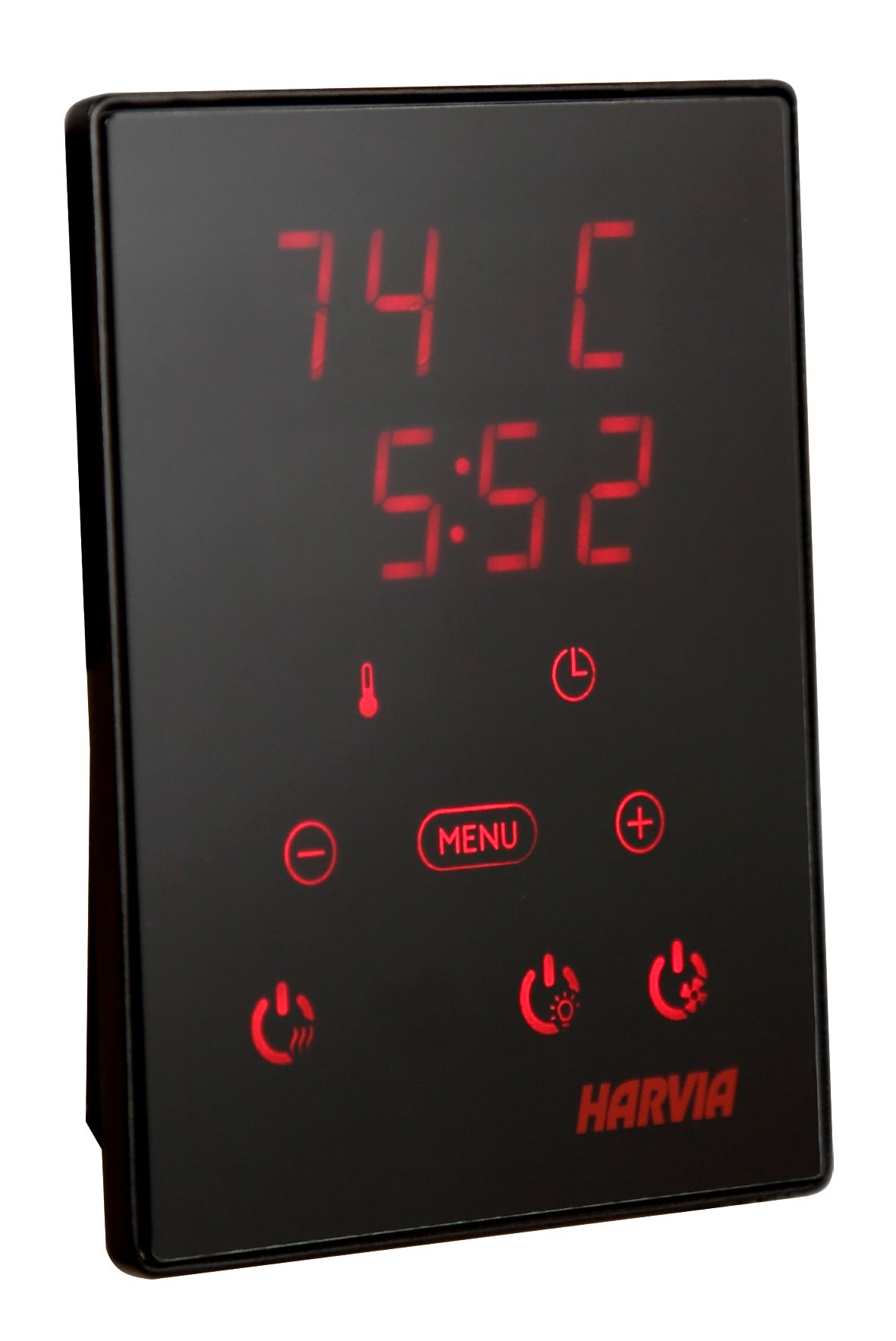

• Clear red LED indication on a dark panel for a premium look
• Panel mounting: surface or flush-mounted

Advantages

• Control up to 17 kW — optimal for more powerful home and commercial saunas
• Comfort and predictability: precise setting of temperature, time, and delayed start
• Full microclimate control: lighting and ventilation management in one interface
• Modern minimalist design that looks premium in any interior
• Simple operation that is clear without long manual studies

Technical Specifications

• Power supply: 400 V 3N~
• Maximum load: 17 kW
• Control panel dimensions: 85 × 24 × 110 mm

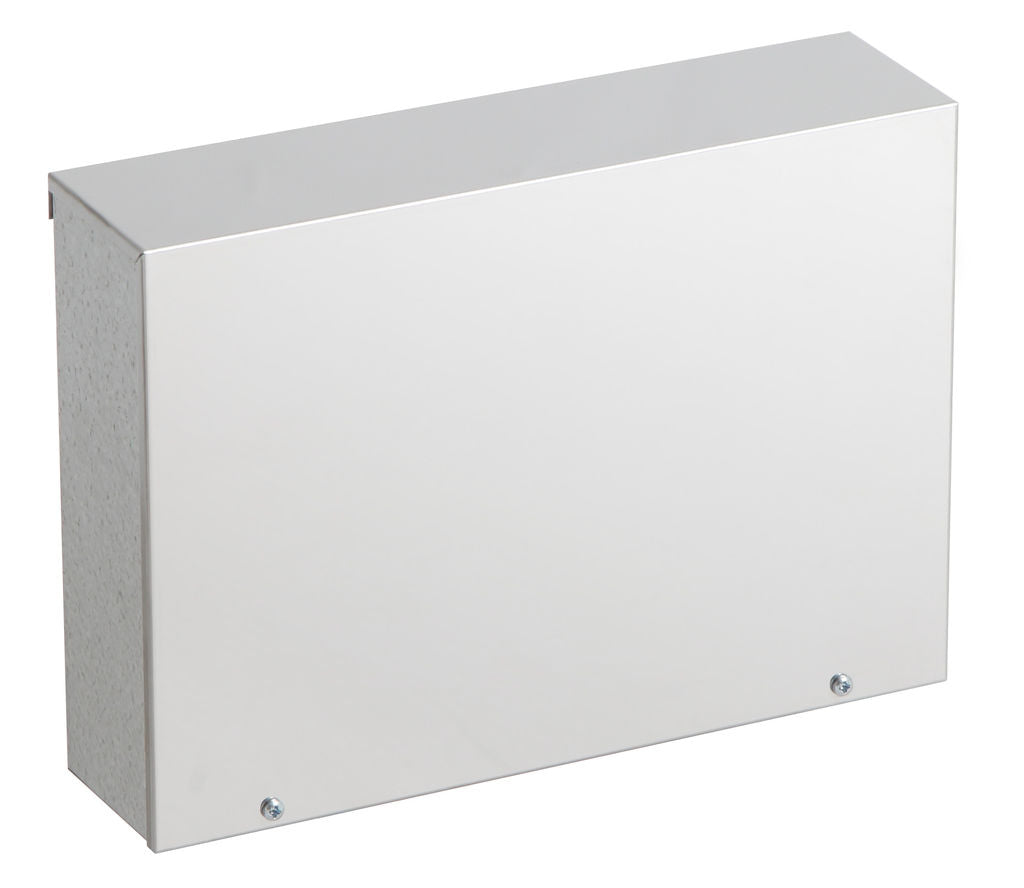

• Power unit dimensions: 272 × 70 × 193 mm
• Temperature sensor: WX232 with 4 m cable and overheat protection
• Control cable: 5 m (extendable up to 30 m)
• Peripheral control: lighting and ventilation up to 100 W (230 V 1N~) each
• Suitable protective silicone cables (400V 3N~):
• 0–6 kW: fuse 3 × 10 A, power cable 5 × 1,5 mm², connection cable 5 × 1,5 mm²
• up to 10,5 kW: fuse 3 × 16 A, power cable 5 × 2,5 mm², connection cable 5 × 1,5 mm²
• up to 17 kW: fuse 3 × 25 A, power cable 5 × 6 mm², connection cable 5 × 2,5 mm²
