CONTROL UNIT HARVIA XENIO CX110

CONTROL UNIT HARVIA XENIO CX110

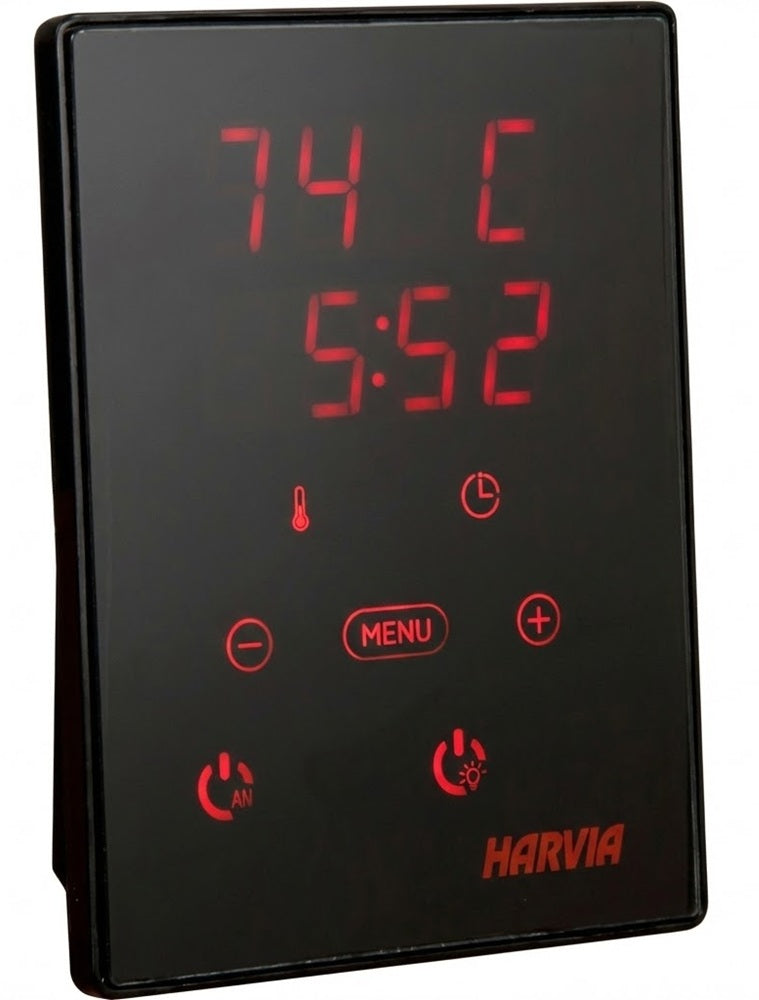

Harvia Xenio CX110 is a modern touch-screen control unit for electric sauna heaters and infrared radiators. It combines minimalist design, high precision in parameter control, and convenience in everyday use. The unit is designed for those who value stable results, safety, and intuitive sauna management from any convenient room. The Xenio CX110 control panel provides full control over temperature, session time, lighting, and delayed start mode.

Product Features

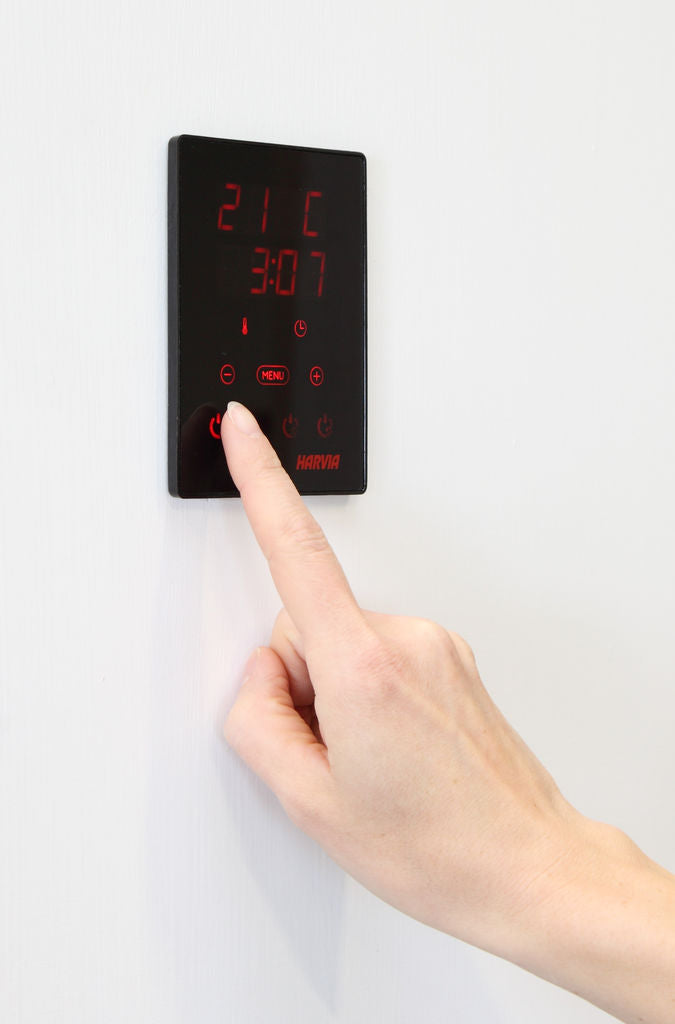

• Touch control panel with digital temperature and time indication
• Temperature adjustment range: 40–110 °C
• Operating time adjustment: private saunas — 1–6 hours, public saunas — 1–12 hours
• Delayed start function: 0–12 hours
• Sauna lighting control (up to 100 W)
• Support for electric heaters, Combi models with steamer, and IR radiators
• Compatibility with equipment with a power of 2,3–11 kW

Advantages

• Precise control of temperature and sauna heating time
• Clear visual indication of the current equipment status

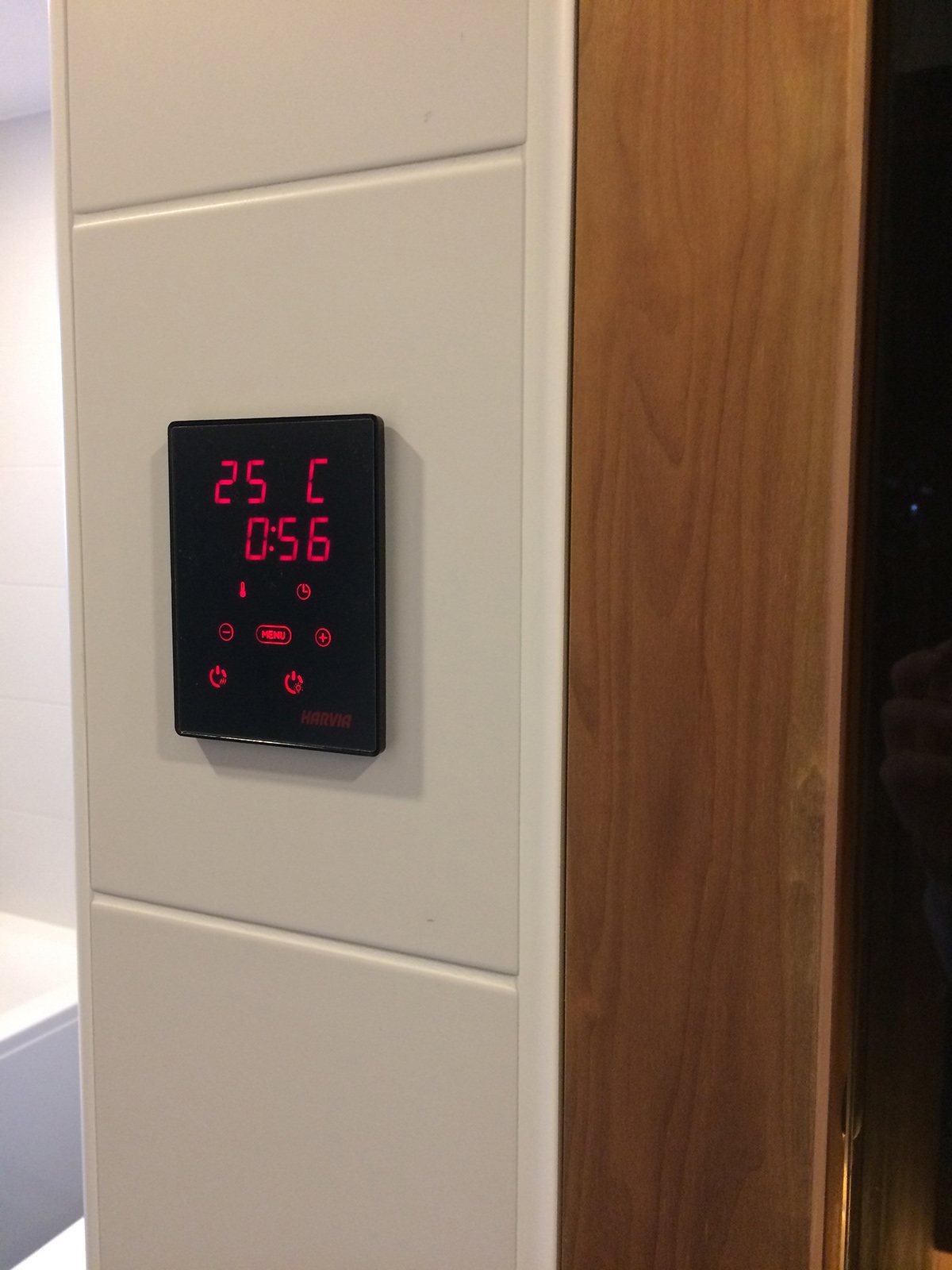

• Flexible mounting options: surface or flush-mounted, inside or outside the sauna
• Reliable electronics for daily and intensive use
• Increased operational safety due to the overheat sensor

Technical Specifications

• Power supply: 400 V 3N~
• Maximum load: 11 kW
• Control panel dimensions: 85 × 24 × 110 mm

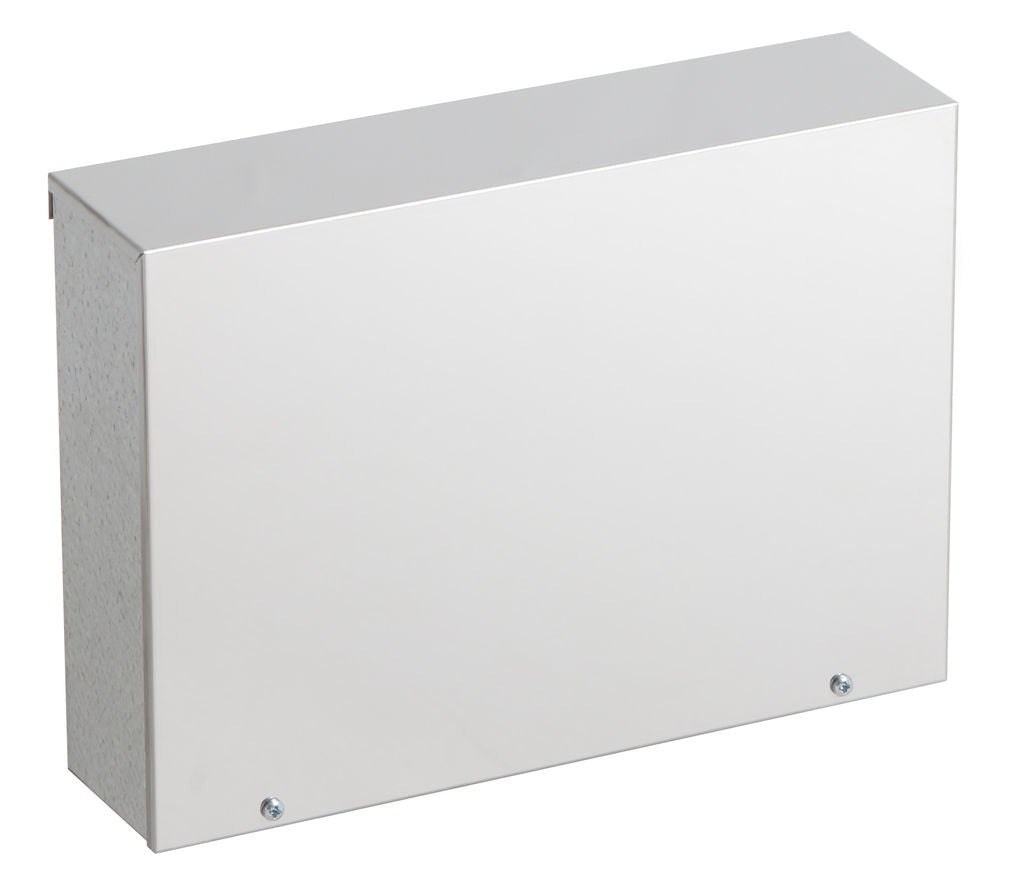

• Power unit dimensions: 272 × 70 × 193 mm
• Temperature sensor: model WX232 with 4 m cable
• Overheat protection: resettable
• Control cable: 5 m (extendable up to 30 m)
• Lighting control: 230 V 1N~, up to 100 W

Application

The Harvia Xenio CX110 control unit is used in private home saunas, apartments, as well as in commercial and public saunas without a weekly timer. It is suitable for infrared cabins and combined systems. The panel can be installed directly in the sauna at a height of up to 1 meter or located in the relaxation area.

Result

You get a stable microclimate in the sauna, predictable heating, and convenient control over all key functions. Xenio CX110 makes using the sauna more comfortable, safe, and technological, ensuring full control over the relaxation process.

Ideal for

• those who want to manage the sauna without complex settings
• projects where a neat and modern look of the panel is important
• use with heaters with a power up to 11 kW
• flush-mounted or remote placement of the control system
