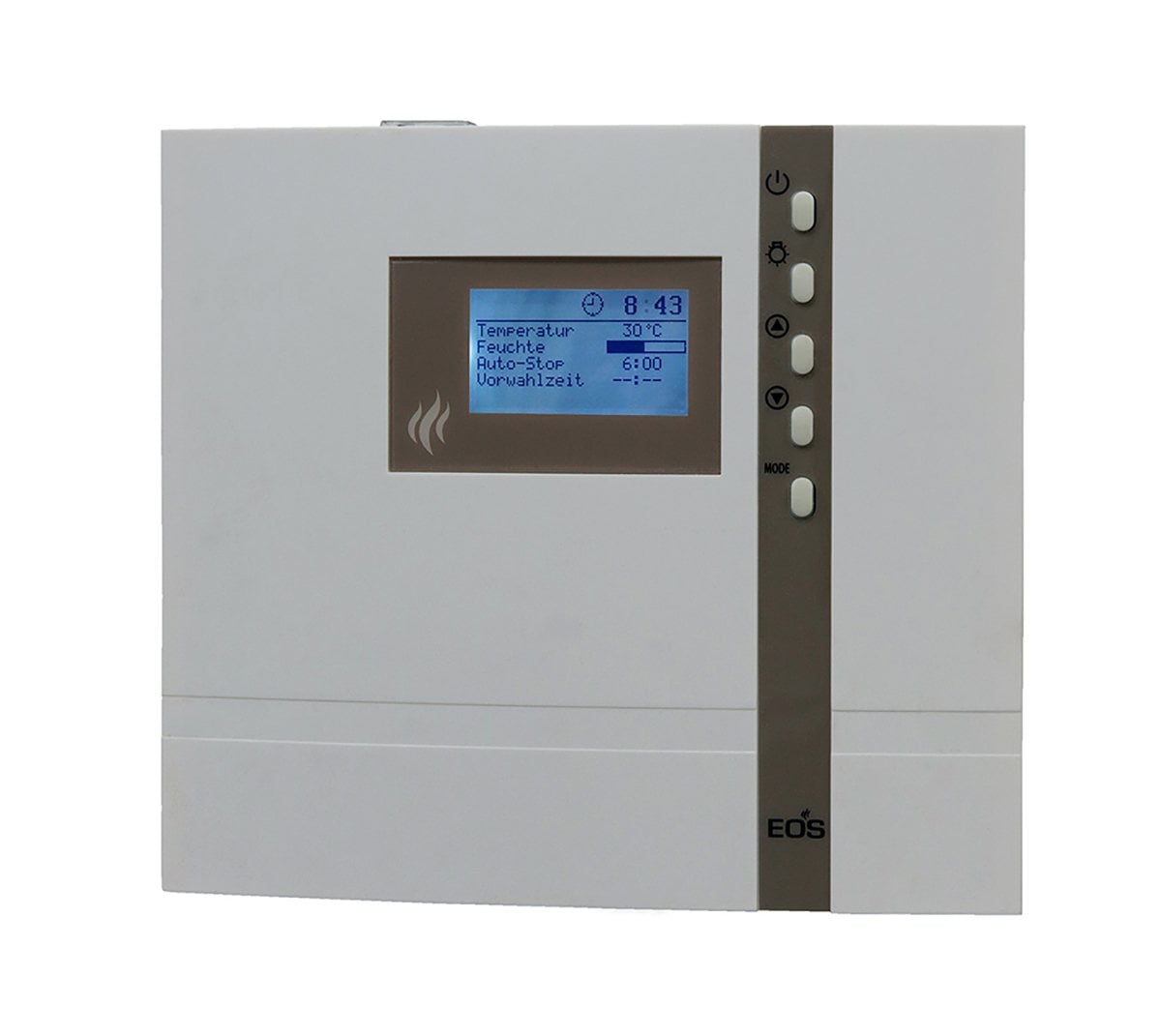

CONTROL UNIT EOS ECON D2

EOS ECON D2, CONTROL UNIT FOR SAUNA

The EOS ECON D2 is an updated digital control unit from the German company EOS Saunatechnik, designed for precise control of the temperature, time, and functions of electric heaters. The model combines reliability, simplicity, and professional features, including support for powerful heaters up to 36 kW when used with a power extender.

Product Features

• Purpose: Control of electric heaters in a sauna.
• Maximum power: up to 9 kW, with a power extender — up to 36 kW.
• Temperature range: from 30 °C to 115 °C.
• Operating time: 6–12 hours of continuous heating.
• Safety: built-in temperature limiter up to 139 °C.
• Display: digital display of temperature and time, simple menu.
• Connection: 400 V 3N AC 50 Hz.
• Dimensions (H×W×D): 220 × 250 × 60 mm.
• Weight: 2 kg.

Advantages

• Precise climate regulation: maintains a stable temperature throughout the entire session.
• Extended capabilities: compatible with the EOS LSG power extender for connecting heaters up to 36 kW.
• Safety and protection: overheating control system and a built-in temperature limiter.
• Energy efficiency: heating optimization to reduce energy consumption.
• User-friendly control: digital interface with a clear display.
• German quality: durable construction designed for a long service life.

Application

Used for controlling electric heaters in:

• Private saunas and bathing complexes;
• SPA areas, fitness centers, and wellness spaces;
• Commercial steam rooms with powerful equipment up to 36 kW.

Result

The EOS ECON D2 control unit provides comfort, safety, and precise climate control. All parameters — temperature, time, and power — are regulated automatically, creating ideal conditions for complete relaxation and wellness.

Ideal for

• Home and commercial saunas up to 36 kW;
• Users who value reliability, simplicity, and technology;
• Professional facilities with high requirements for equipment stability and safety.
