Gecko
Aqua-Flo Circ-Master XP2 Circulation Pump for Jacuzzi & Sundance 2"
Aqua-Flo Circ-Master XP2 Circulation Pump for Jacuzzi & Sundance 2"
🔄 Free Returns – 30-Day Window (Sale Items Final)
🥇 All Products Comprehensive Warranty
🔒 Secure Checkout – SSL Encrypted
💳 0% Finance Available*
Aqua-Flo Circ-Master XP2 Circulation Pump for Jacuzzi & Sundance 2"

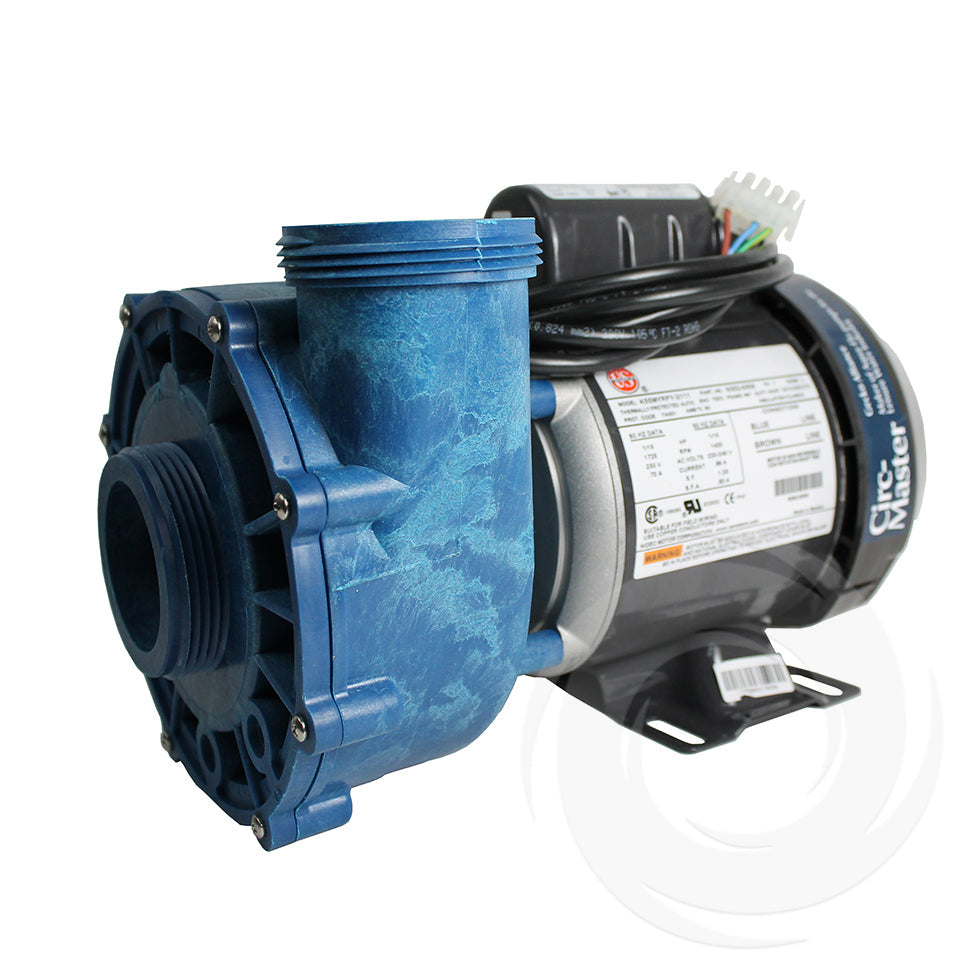

The Aqua-Flo Circ-Master XP2 is a high-performance circulation pump engineered for continuous 24-hour operation in Jacuzzi and Sundance spa systems. Designed to enhance water filtration and heating efficiency, this pump delivers reliable, quiet performance throughout daily operation without interruption.
Built on a 48-frame continuous-duty motor with permanently lubricated ball bearings, the Circ-Master XP2 is designed for long service life with minimal maintenance. The carbon-graphite self-lubricating seal ensures dependable performance during extended circulation cycles, while the high GPM output supports efficient high-flow heating systems.
Featuring a side discharge configuration and 2-inch suction and discharge connections (78mm OD), this pump is commonly fitted in Jacuzzi J400 series and Sundance 880 series spas, and is also compatible with select Master Spas and Down East models. No cable is supplied — the existing 3-core cable can be used for electrical connection.
Specifications
| Specification | Detail |
|---|---|
| Brand | Gecko / Aqua-Flo |
| Model | Circ-Master XP2 |
| SKU | PC-CM118 |
| Motor Power | 0.08 HP (0.06 kW) |
| Current Draw | 0.63 A |
| Motor Speed | 1,425 RPM |
| Speed | 1 Speed |
| Plumbing Connections | 2" Suction & Discharge (78mm OD) |
| Motor Frame | 48-Frame, Continuous Duty |
| Bearings | Permanently Lubricated Ball Bearings |
| Seal | Carbon-Graphite Self-Lubricating |
| Discharge | Side Discharge |
| Electrical Connection | No Cable Supplied — Use Existing 3-Core Cable |
| Length | 330 mm |
| Width | 175 mm |
| Height | 210 mm |
Frequently Asked Questions
This pump is commonly fitted in Jacuzzi J400 series and Sundance 880 series spas, and is also compatible with select Master Spas and Down East models.
No cable is supplied. The pump is designed to connect using your existing 3-core cable.
Yes. The Circ-Master XP2 is specifically engineered for continuous 24-hour circulation duty.
The pump uses 2-inch suction and discharge connections with a 78mm outer diameter.
The permanently lubricated ball bearings and carbon-graphite self-lubricating seal minimise wear and maintenance requirements, ensuring dependable long-term operation.
