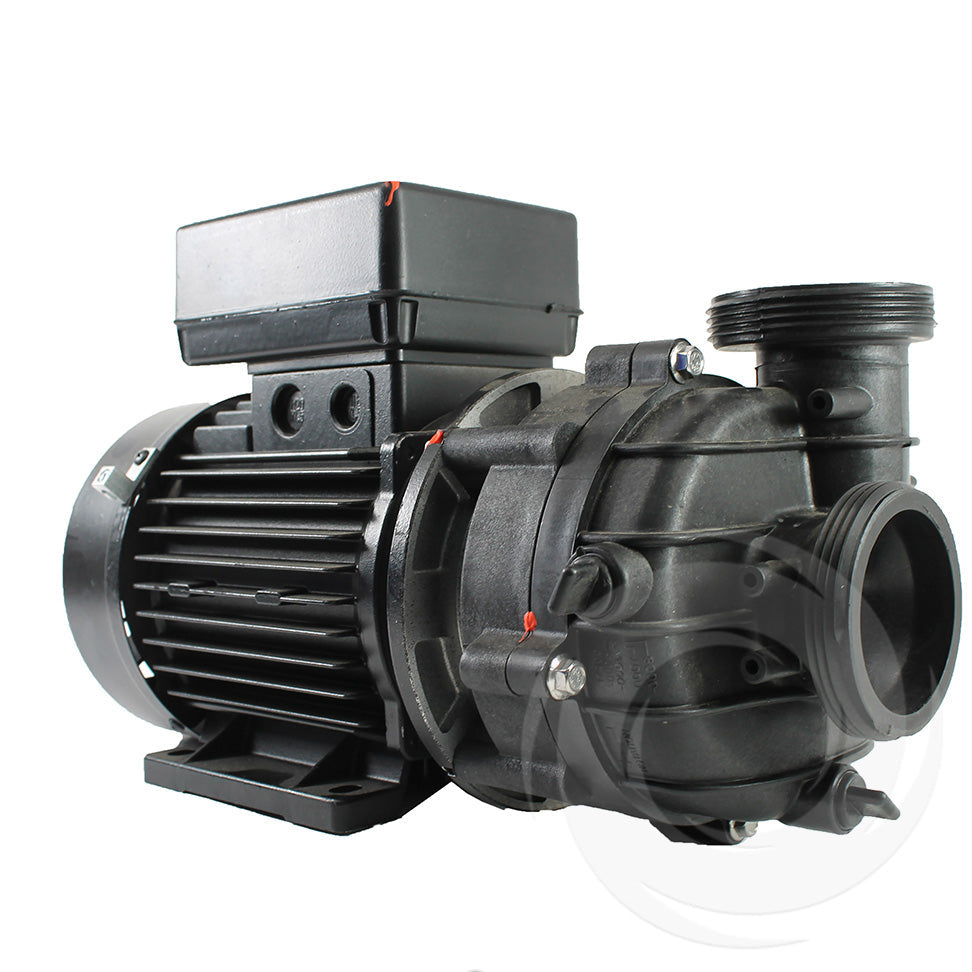

Balboa/Pentair Durajet 2.0HP Two-Speed Spa Pump
The Balboa/Pentair Durajet 2.0HP Two-Speed Spa Pump is a professional-grade circulation and massage pump designed for demanding hot tub and spa environments. Combining a Balboa motor with a Pentair wet end, this unit delivers dependable dual-speed performance — low speed for quiet circulation and high speed for full hydrotherapy massage jets.
With a rotatable wet end design, this pump accommodates a variety of plumbing layouts, making it a popular OEM replacement choice in Dimension One Spas, HotSpring, and Master Spas. Running on a standard 230V / 50Hz supply, it draws just 1.9A at low speed (1,400 RPM) and 9.0A at high speed (2,800 RPM), striking an efficient balance between power and energy use.
Plumbing connections are via standard 2-inch unions, and electrical installation requires a 4-core cable (not supplied). Supplied individually; available in box quantities of 10 units for trade orders.
| Specification | Detail |
|---|---|
| Brand | Balboa / Pentair |
| SKU | PW-DJ202 |
| Motor Power | 2.0 HP (1.5 kW) |
| Power Supply | 230V, 50Hz |
| Speeds | 2-Speed |
| Low Speed | 1.9A @ 1,400 RPM |
| High Speed | 9.0A @ 2,800 RPM |
| Plumbing Connections | 2-inch unions |
| Cable Required | 4-core (not supplied) |
| Height | 210 mm |
| Length | 440 mm |
| Width | 215 mm |
| Box Quantity | 10 units per box |
| Compatible With | Dimension One Spas, HotSpring, Master Spas |
This pump is commonly used in Dimension One Spas, HotSpring, and Master Spas. It features a rotatable wet end to suit multiple plumbing configurations. If you’re unsure, check your existing pump’s label for voltage (230V), HP (2.0), and union size (2") to confirm compatibility.
Installation requires a 4-core cable, which is not included with this pump. Please ensure you use appropriately rated cable and that installation is carried out by a qualified electrician.
Low speed (1,400 RPM / 1.9A) is typically used for quiet background filtration and circulation. High speed (2,800 RPM / 9.0A) powers the massage jets for your full hydrotherapy experience.
Yes. The Durajet features a rotatable wet end, allowing you to orientate the inlet and outlet to match your existing pipework without needing to modify your plumbing layout.
