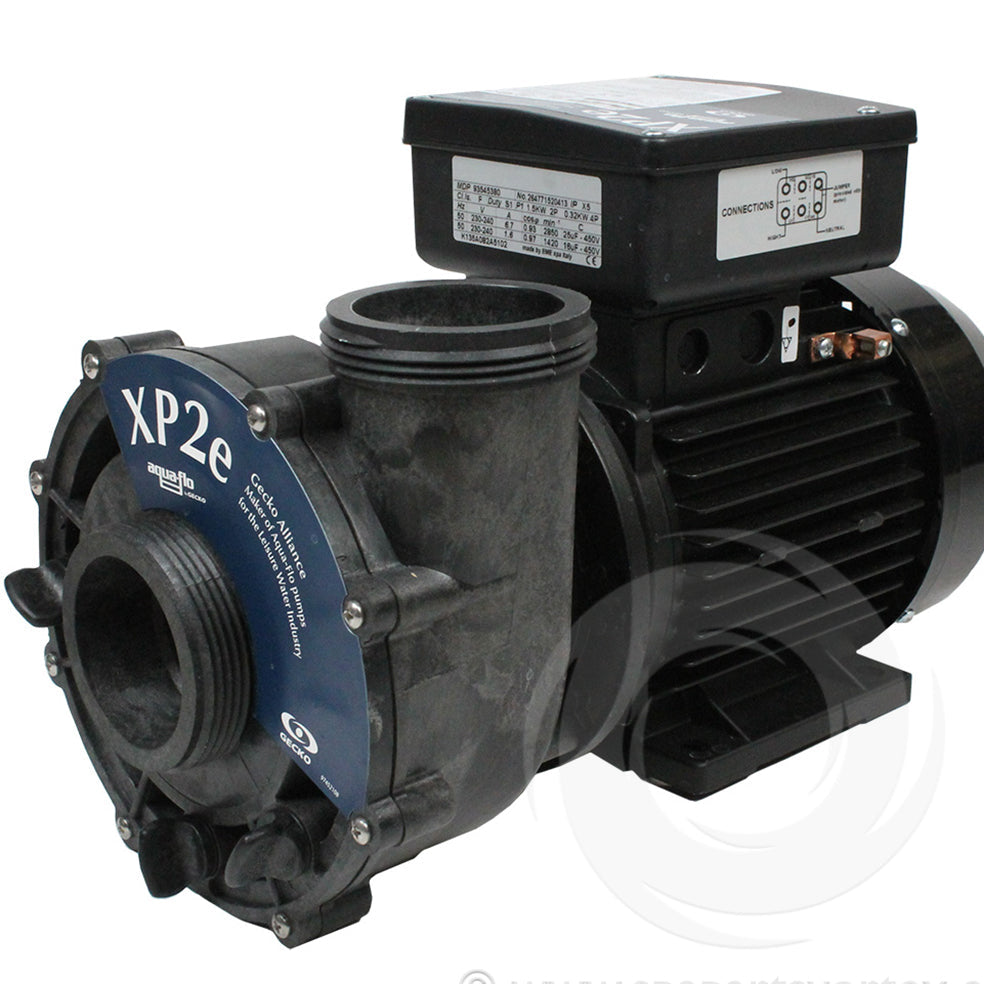

Aqua-Flo by Gecko XP2e 2.0HP Two-Speed Hot Tub Pump 2"
The Aqua-Flo by Gecko XP2e is a premium two-speed massage pump built for demanding, high-flow spa applications. Delivering up to 1,060 litres per minute (280 GPM), it provides the power and flow rate needed to drive multiple jets simultaneously — making it an ideal choice for larger hot tubs and performance-focused spa installations.
Fitted with a 48-frame motor featuring thermally protected Class F insulation, the XP2e is engineered for durability and consistent long-term performance. Its centre-suction, side-discharge design allows the wet end to be rotated during installation, giving engineers and installers the flexibility to adapt to a wide variety of spa cabinet configurations with minimal modification.
The XP2e is a direct replacement for older Gecko XP2 models, making it one of the most sought-after spa pump upgrades and replacements in the market. Whether you’re replacing a worn pump or upgrading an existing system, this pump delivers a noticeable improvement in jet performance and reliability.
| Specification | Detail |
|---|---|
| Model / SKU | XP2e / PW-AF202 |
| Brand | Gecko (Aqua-Flo) |
| Motor Power | 2.0 HP (1.5 kW) |
| Speed | Two Speed (2 x 2) |
| Current Draw — Low Speed | 1.8 A @ 1,450 RPM |
| Current Draw — High Speed | 9.0 A @ 2,850 RPM |
| Max Flow Rate | 280 GPM (1,060 LPM) |
| Plumbing Connections | 2" suction & discharge |
| Discharge Configuration | Centre suction, side discharge (rotatable wet end) |
| Motor Frame | 48-frame |
| Motor Insulation | Class F, thermally protected |
| Compatibility | Direct replacement for XP2 models; suits most spa brands |
| Height | 232 mm |
| Length | 379 mm |
| Width | 203 mm |
Yes. The XP2e is specifically designed as a direct upgrade and replacement for the older Gecko XP2 pump. It shares the same footprint and plumbing connections, making it a straightforward swap in most spa installations.
A two-speed pump operates at two distinct speeds — low speed (1,450 RPM / 1.8A) for quiet background circulation, and high speed (2,850 RPM / 9.0A) for full jet performance. This allows the spa control system to switch between energy-saving and high-power modes as needed.
Yes. The XP2e’s wet end can be rotated to suit various spa cabinet layouts. This makes installation significantly more flexible, especially when replacing pumps in tight or awkward cabinet configurations.
The XP2e uses 2-inch suction and discharge ports, which are standard for most mid-to-large hot tub systems. Always verify your existing plumbing size before ordering to ensure compatibility.
The XP2e’s high flow rate of up to 1,060 LPM (280 GPM) allows it to support multiple jets per pump, making it well-suited to larger spas or those with high jet counts. The exact number of jets supported will depend on jet size, plumbing design, and system configuration.
The XP2e is built on a 48-frame motor with Class F insulation — a robust, industry-standard frame commonly found in professional spa pump applications. This ensures compatibility with most 48-frame motor housings and pump bases.
