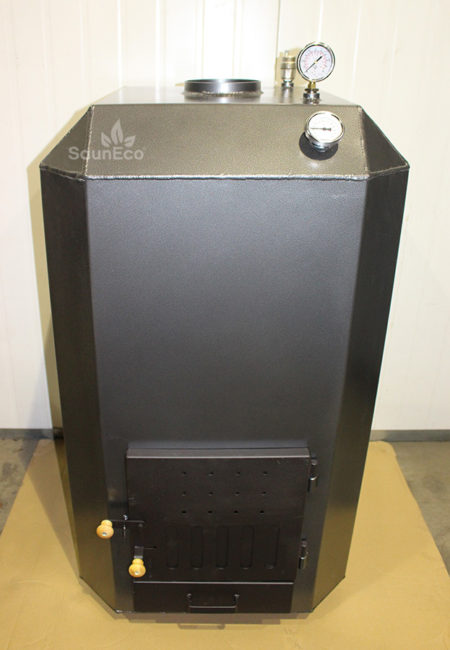

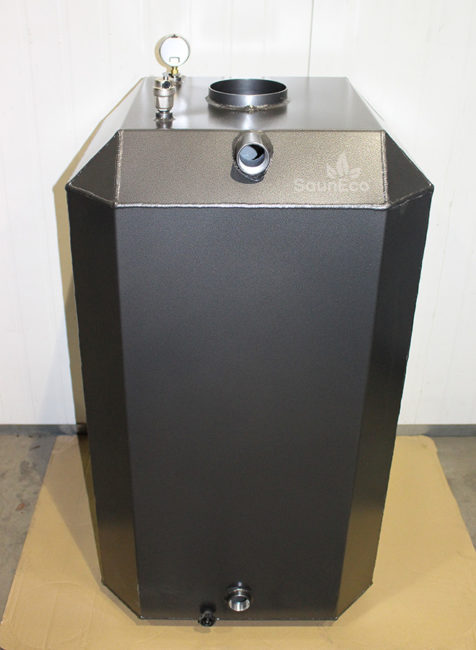

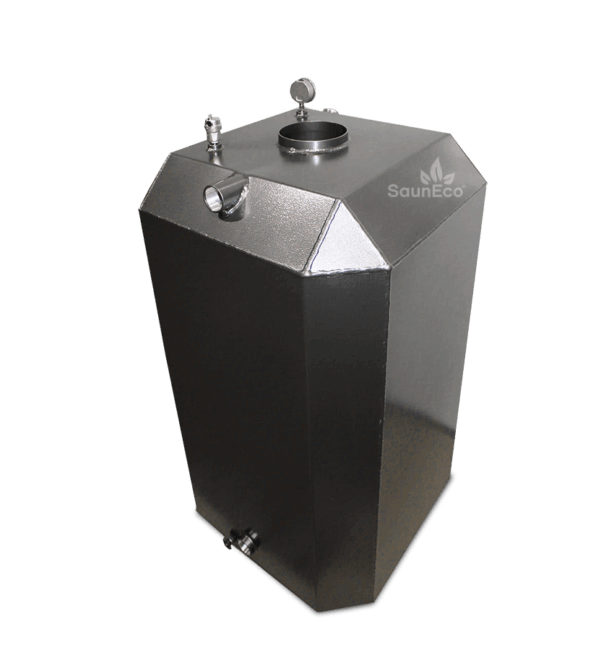

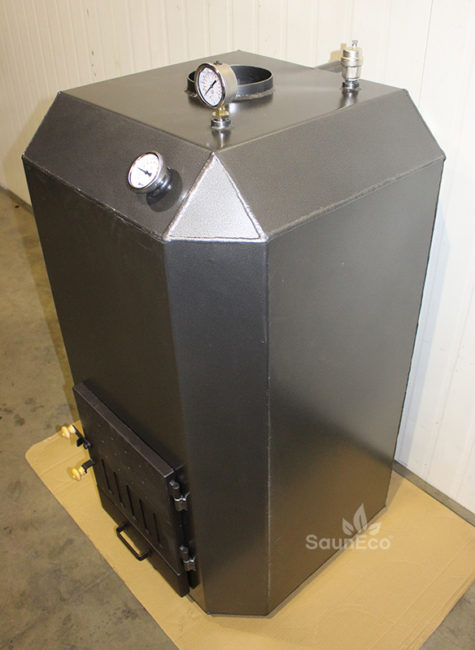

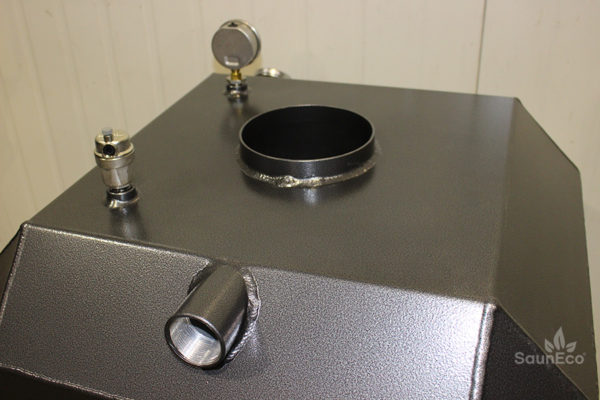

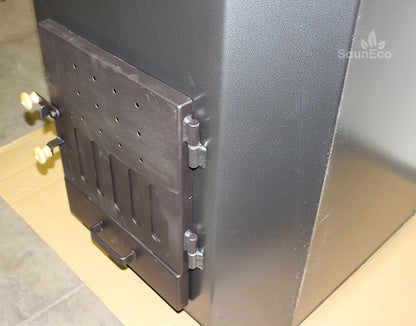

Upright Wood-fired Swimming Pool Heater 80kW (Aluminium)

Model: Ignis-V80
Type: Wood-fired
Material: Aluminum, seawater resistant
Width: 655 mm / 25,8 inches
Height: 1160 mm / 45,7 inches
Depth: 750 mm / 29,5 inches
Weight: 72 kg / 158,7 lb

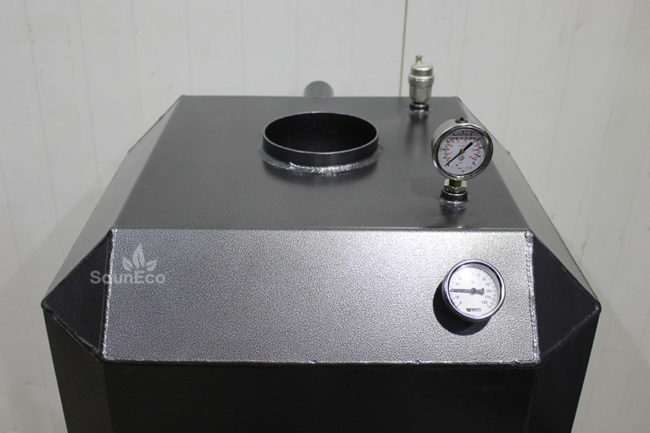

Chimney: 2000 mm (stainless steel)
Power: 80 kW

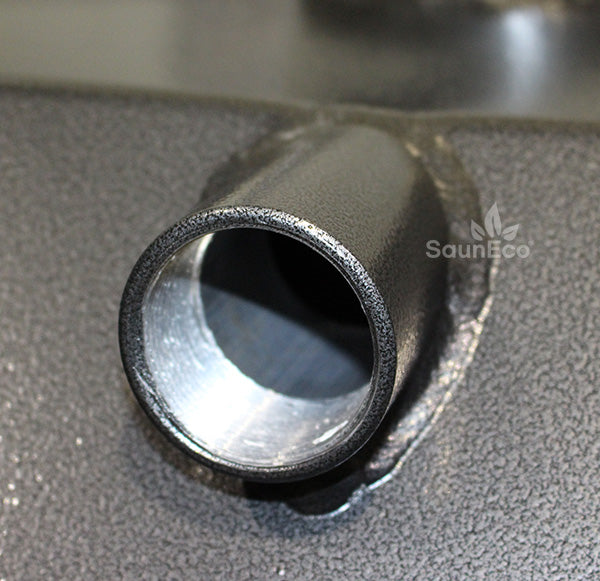

Diameter of connecting tubes: 2 x 38,1 mm (2 x 1,5 inches, internal thread)

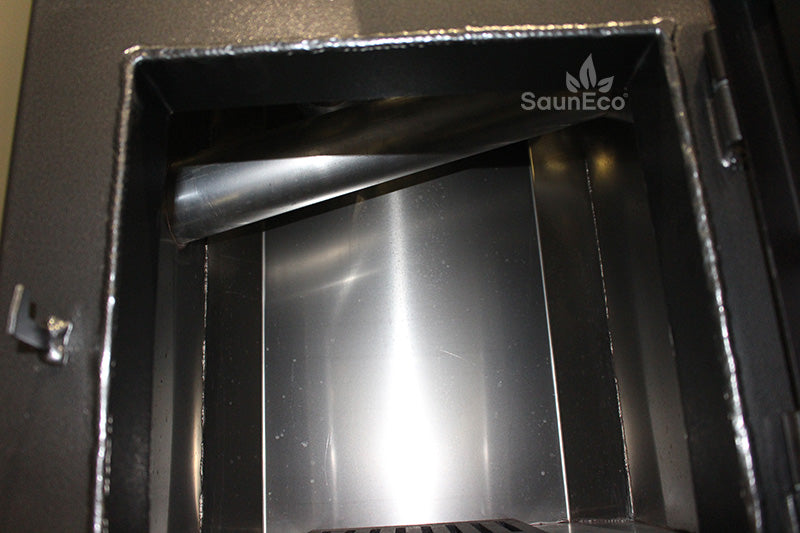

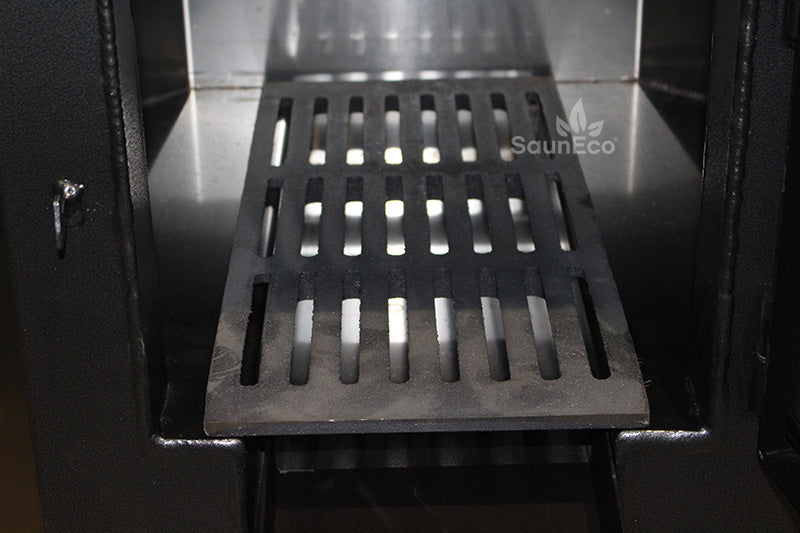

Chamber dimensions:
Depth: 59 cm / 23,2 inches
Width: ca 31,5 cm / ca 12,4 inches
Height: ca 31,5 cm / ca 12,4 inches

The stove is made of high quality marine aluminum. The thermal conductivity of aluminum is about 15 times better than the stoves made of stainless steel and therefore our stoves are up to 30% more effective.

The material is ca 0.12 inches (3 mm) thick, which is two times more than in case of regular furnaces made of stainless steel. And of course, aluminum furnace is 30% lighter. Aluminum furnaces have longer useful life than furnaces made of stainless steel. The aluminium heaters retain their shape for a long time. Heaters made from thin stainless steel may become crooked.

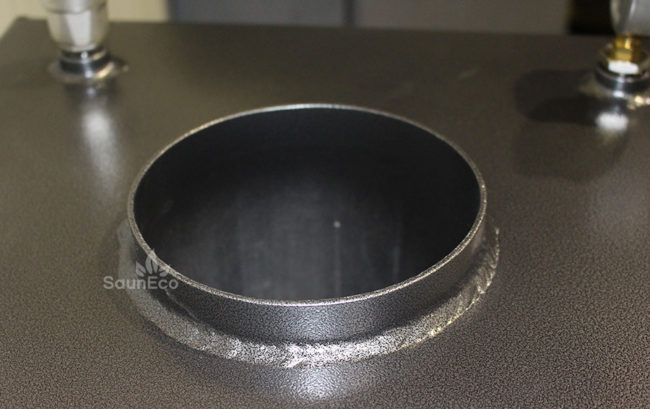

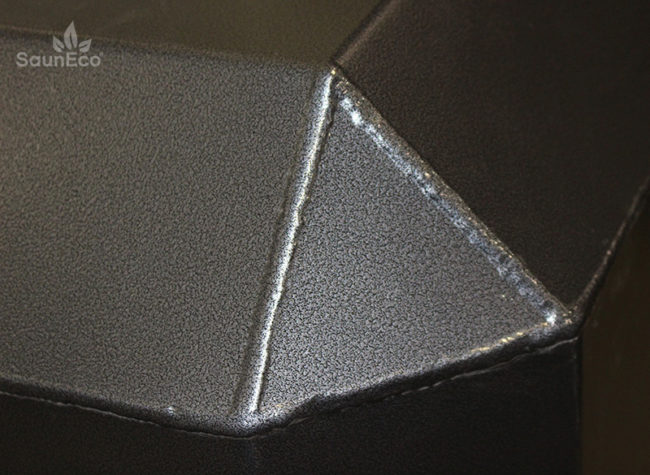

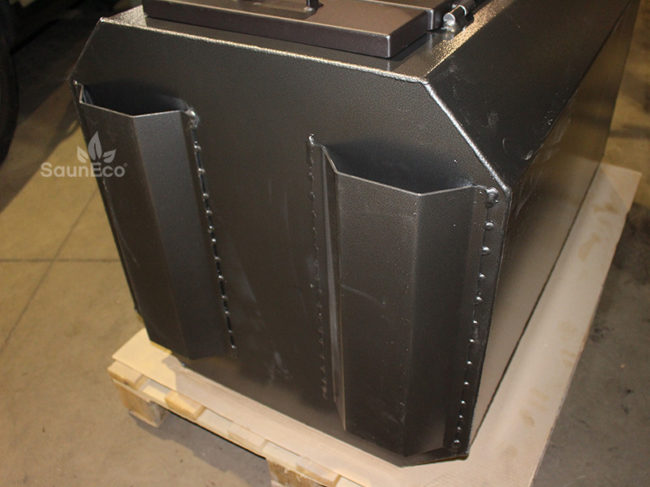

High-quality MIG welding ensures the perfect end result. We check and test impermeability of all welded seams.

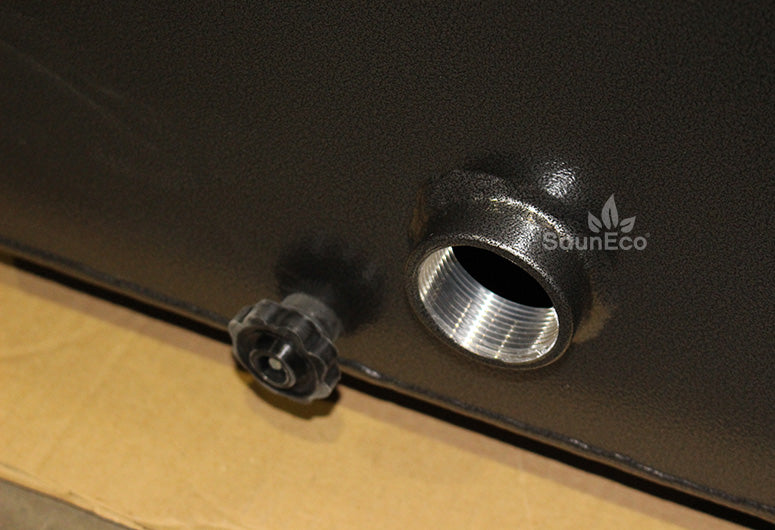

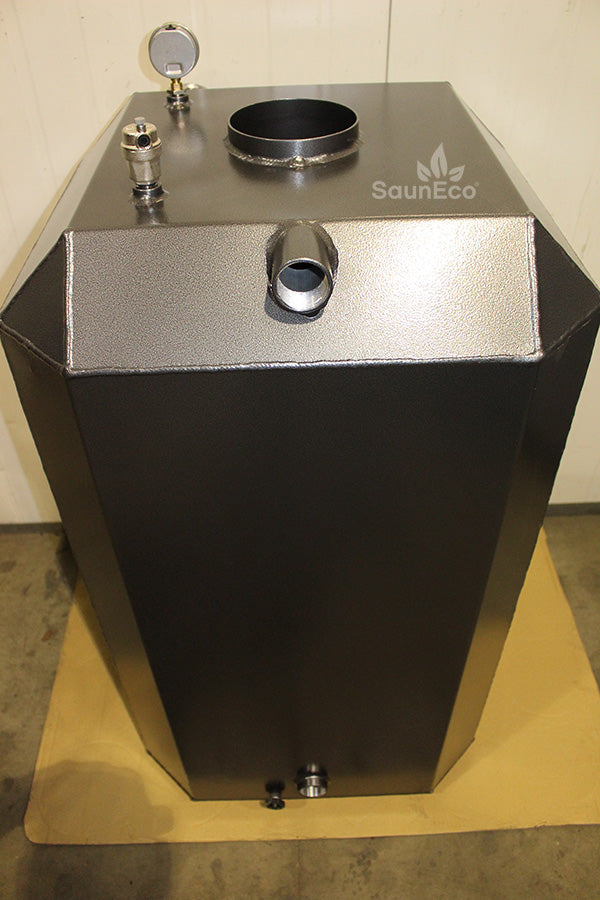

It´s strictly forbidden to start the heating before the heater is not filled with water. Otherwise the heater will be damaged. The heater has also a small drainage tap under it and in winter time when the temperature is already -1 degree you should empty your heater, otherwise the water may freeze and this may cause irreparable damage. With our aluminum heaters we do not recommend to use the chlorine. Regarding other chemicals please make sure it is harmless to the marine aluminum.
