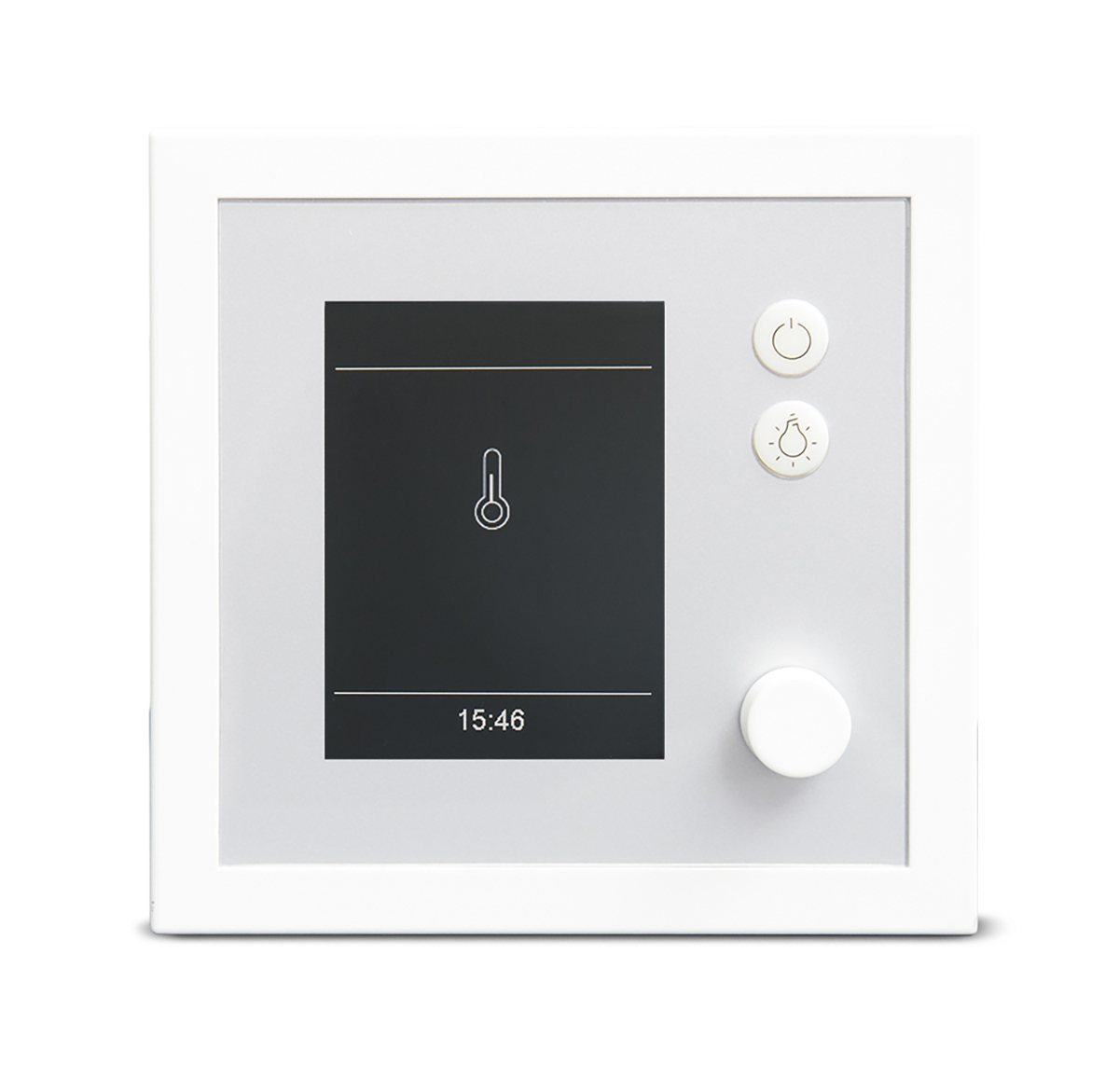

SAUNA CONTROL UNIT EOS EMOTEC D, WHITE/SILVER

Innovative premium-class sauna control unit for dry (finnish) sauna operation. Advanced sauna control system with compact control panel with colour display and a separate relay box. Thanks to the innovative navigation concept Emotec D allows easy and intiuive operation, all major functions can be reached and set within a few seconds.

Features and benefits:

• Compact-size control panel with a large multicolour TFT display.
• Flush-mounted or surface-mounted installation (control panel).
• Intuitive navigation with icons and clear text function description.
• Menu navigation in 18 languages (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK).
• With a practical jog-dial knob you can quickly select any function and instantly make all necessary settings.
• Dry and humid sauna operation (with / without humidity sensor)
• Separate service level with pin-code protection.
• Child lock and a new innovative "hotel mode" function.
• Week timer with individual climate settings.
• Intelligent setup menu, clear text messaging (functions, errors).
• Software may be updated with a micro-SD card (own contact details incl. own logo may be installed).
• Numerous extension modules optionally available (e.g. remote switch, colour light, sound, network, second display, usw.).
• Potential-free contact (output).
• The distance between the control panel and the main relay box may be easily extended to at least 100 m. 5 m connection cable with standard plugs is included.
• Simple installation and service-friendly design. All components (control panel, sensors and extensions are connected using standard plug cables). The relay box allows cable connections from the rear and from the bottom side.
• High safety standards, complies with the latest EU norms.

Technical details:

• Power output: 9,0 kW resistive load (extension possible with LSG)
• Temperature control range: 30° - 100°C
• Heating time limitation: 6 h/ 12 h / unlimited
• Time pre-selection: 24h real time or week timer
• Cabin light output: 230 V / max. 100 W, dimmable
• Fan output: 230 V / max. 100 W, adjustable speed
• Sensor system: Digital, incl. 5 m cable
• Control panel (flush-mounting): HxWxD = 127 x 130 x 25 mm
• Relay box (wall-mounting): HxWxD = 270 x 300 x 100 mm
