MIBOXER SWR SMART SWITCH

MIBOXER SWR — SMART SWITCH CONTROLLER FOR HOME AUTOMATION

The Miboxer SWR is a compact intelligent switch controller designed to manage the on/off state of lighting and household appliances. The device supports a wide input voltage range of 100–240 V and operates via a secure 2,4 GHz radio channel. This controller allows you to upgrade conventional rocker switches and PUSH buttons, integrating them into a smart home system without replacing existing wiring.

Product Features

• Device type: intelligent switch controller (ON/OFF)
• Input voltage: AC 100–240 V (50/60 Hz)
• Control: 2,4 GHz radio frequency (GFSK protocol) and physical switches
• Data transmission: two-way communication with real-time status feedback in the app
• Integration: full support for the Tuya Smart ecosystem (via gateway)
• Voice control: Alexa, Google Assistant, and others
• Retransmission: automatic signal repeating function to extend network range

Advantages

• Wide compatibility: stable operation in networks ranging from 100 to 240 V
• Simple modernization: turns classic appliances into smart ones without replacing fixtures
• Connection stability: 2,4 GHz frequency ensures zero-delay operation
• Autonomy: remote control functionality remains active even without a Wi-Fi connection
• High power capacity: reliable switching of loads up to 10 A (up to 2500 W)
• Compact installation: small dimensions allow the device to fit in a standard wall box

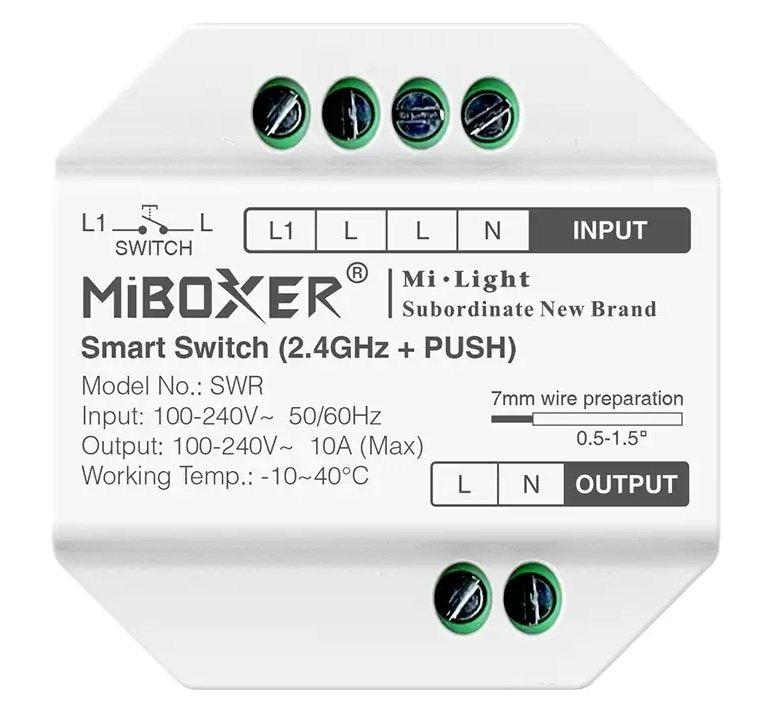

Technical Specifications

• Input voltage: AC 100–240 V
• Output voltage: AC 100–240 V
• Maximum load current: 10 A
• Communication type: RF 2,4 GHz
• Signal transmission distance: up to 30 m
• Body dimensions: 49 × 49 × 25 mm
• Operating temperature: –10…+40 °C

Application

Used for remote switching of LED lights (without dimming), incandescent lamps, and halogen bulbs. The controller is suitable for automating household appliances such as fans, humidifiers, heaters, and electric fireplaces. Designed for concealed mounting in junction boxes in residential and commercial spaces.

Result

With Miboxer SWR, you gain total control over electrical devices from anywhere. The system allows for automated scenarios, reduces Wi-Fi network load, and ensures stable device response.

Ideal for you

• If you are building a smart home based on the Tuya platform
• If you want to keep your classic wall switches
• For automating powerful household appliances with a current draw up to 10 A
• If you require remote lighting control in rooms with complex layouts
