HUUM CHIMNEY SET THROUGH CEILING

HUUM CHIMNEY SET THROUGH CEILING, Ø115 MM

The complete HUUM modular chimney set is created for the safe passage of the chimney through the ceiling and roof in saunas and bathhouses. All elements are made of stainless steel, withstand high temperatures, and are designed for a long service life. The construction ensures stable draft and fire safety at all stages of operation. The kit provides a full "turnkey" chimney installation — from the heater to the roof peak.

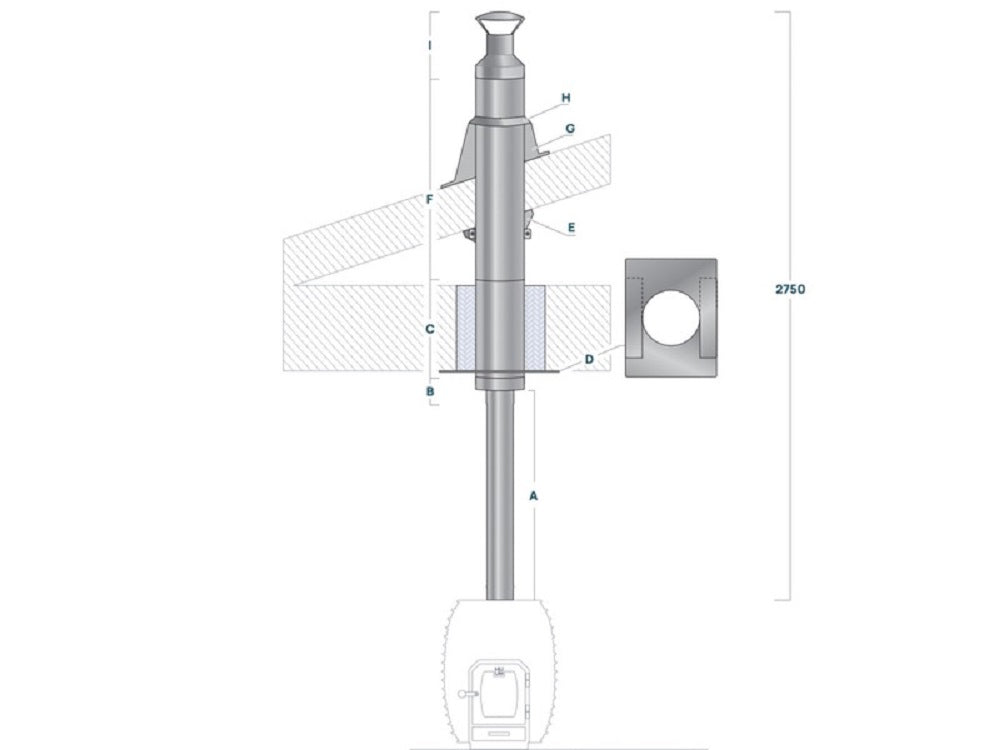

Set Composition

• A – Single-wall pipe 1 m. The initial section of the chimney made of heat-resistant stainless steel.
• B – Chimney base (welded). The load-bearing base of the system for rigidity and correct seating.
• C – Double-wall chimney 0,5 m. Heat-insulated module used for passing through ceilings.
• D – Ceiling cover (2 parts). Decorative and protective element for a neat passage.
• E – Rafter bracket to chimney. Fixation of the riser preventing shifting and vibrations.
• F – Double-wall pipe 1 m. The main insulated module above the ceiling node.
• G – Ventilated roof flashing 0–20°. Airtight outlet through the roof.
• H – Rain collar. Additional protection of the passage node from precipitation.

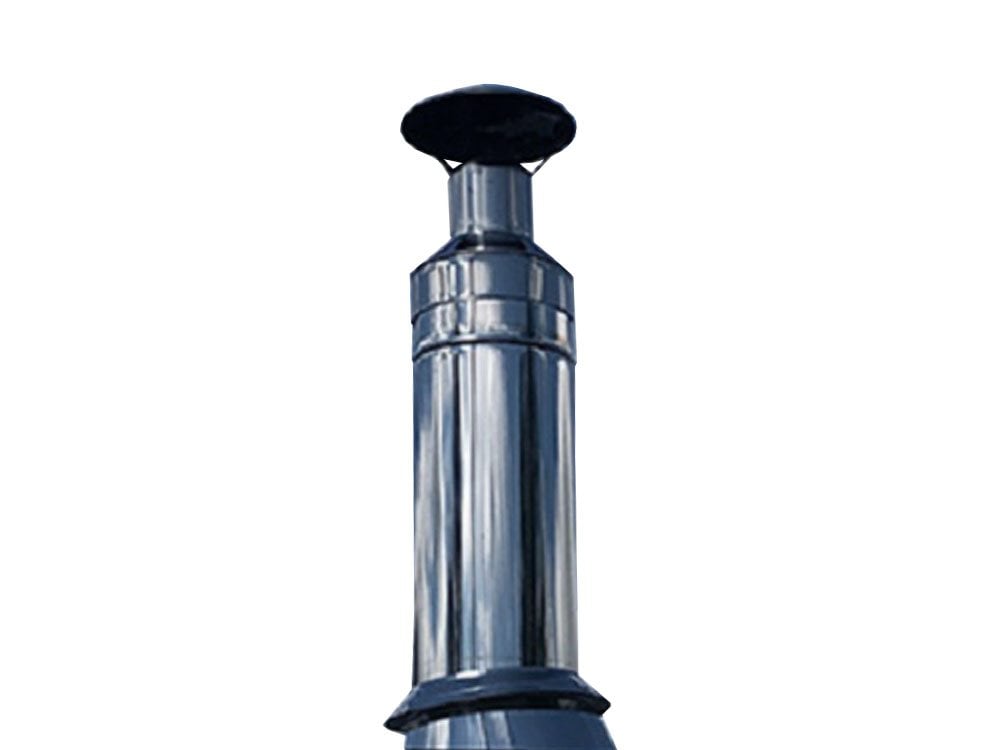

• I – Chimney cap (deflector). Top protective element for improving draft.

Advantages

• Ideally suits HUUM wood-burning stoves and most Ø115 mm heaters
• Certified fire-safe construction
• Modular system — fast and reliable assembly
• Double-wall heat-insulated pipes
• Stable operation in any weather conditions
• Complete tightness of passage nodes and maximum building structure protection
• Stainless steel — resistance to corrosion and condensate

Technical Specifications

• Material: stainless steel
• Inner pipe diameter: 115 mm
• Flue gas temperature: up to 600 °C
• Connection type: modular with locking latches
• Safety distance to combustible materials: according to standards
• Purpose: wood-burning sauna stoves

Application

The kit is perfectly suitable for private bathhouses and saunas, sauna cabins and modular buildings, as well as projects requiring passage through the ceiling and roof for stoves with a vertical chimney outlet.
