HUUM BARREL CHIMNEY SET

HUUM BARREL CHIMNEY SET — CHIMNEY THROUGH THE CEILING FOR BARREL SAUNAS, Ø115 MM

The HUUM chimney kit for barrel saunas is designed specifically for the safe removal of flue gases from HUUM wood-burning heaters. The design allows passage through a curved ceiling and is suitable for all models of barrel saunas where a compact, reliable, and heat-resistant solution is required. All elements are made of stainless steel and fully comply with European safety standards. The kit is resistant to high temperatures, corrosion, humidity, and atmospheric influences.

Purpose of the set

• Safe vertical passage of the chimney through the barrel sauna ceiling
• Protection of wooden elements from overheating
• Tightness of roof exit nodes
• Ensuring stable draft
• Long-term operation in the humid sauna environment

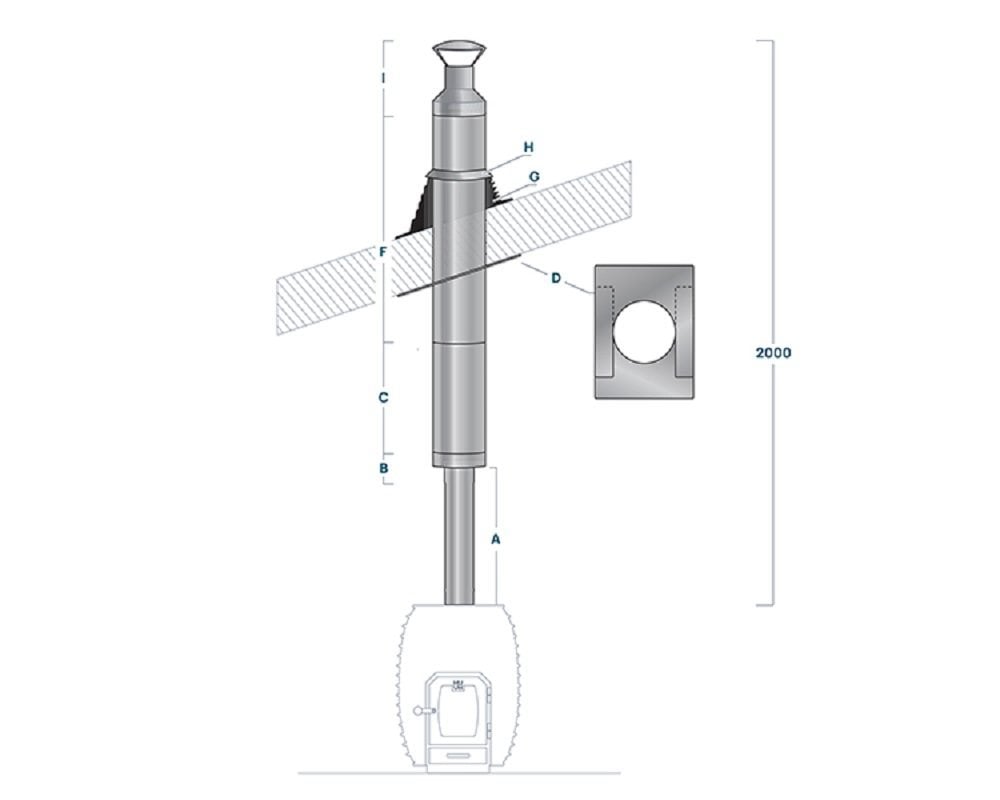

Set Composition

• A — Single-wall chimney 0,25 m. The initial segment, installed directly above the heater. Made of heat-resistant stainless steel. Withstands maximum temperatures.
• B — Welded chimney start. Transitional and protective element ensuring a safe start of the chimney system and tight connections.
• C — Double-wall chimney 0,5 m. Heat-insulated pipe used for passing through the ceiling structure. Reduces heat transfer and prevents wood overheating.
• D — Double-walled cover plate for sloped ceiling. Protective and decorative plate, specially designed for round and sloped ceilings of barrel saunas. Simplifies installation and creates a neat appearance.
• F — Double-wall chimney 1 m. The main insulated module, bringing the system to the required height above the roof. Ensures stable draft and fire safety.
• G — Universal rubber roof bushing. Airtight exit node through the roof. Suitable for most roof angles. Protects against water, snow, and wind.
• H — Rain collar. Additional protection of the passage node. Prevents water from flowing down the pipe.
• I — Chimney cap. Final protective element, prevents precipitation ingress and improves draft.

Advantages

• Designed specifically for barrel saunas
• Ideally fits HUUM heaters and Ø115 mm
• Modular system — easy and fast installation
• High corrosion resistance
• Insulation protects the ceiling and sauna walls from overheating
• Reliable sealing of passage nodes
• Safe operation during intensive use
• European quality standards

Technical Data

• Material: stainless steel
• Inner pipe diameter: 115 mm
• System type: single-wall + double-wall
• Flue gas temperature: up to 600 °C
• Application: wood-burning stoves in barrel saunas
