HARVIA PRO D2i

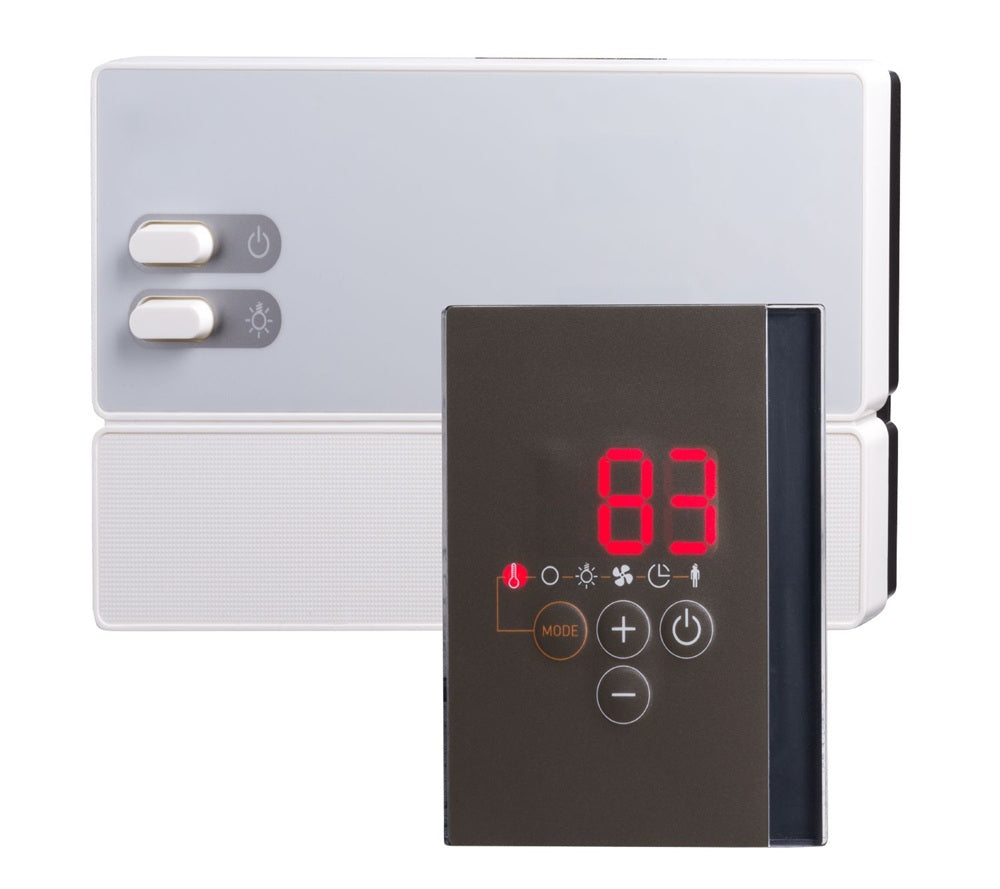

HARVIA PRO D2i CONTROL UNIT

The PRO D family from sentiotec impresses with its modern and timeless design and can be installed either outside or inside the sauna. In other words, directly in the sauna, right next to you. The PRO D2 allows you to easily and conveniently bring your sauna heater to the desired temperature. And if you would like it to be a few degrees warmer, you do not have to get up to make changes. With the PRO D series, you can adjust all settings from the bench. With the PRO D2i, you also have the option to place and operate an infrared radiator in your sauna. An additional operating unit can be placed right next to the radiator to control the intensity.

Product Features

• 2-part sauna control unit (up to 4 sauna operating units can be used)
• Patented technology
• Installation of the operating unit possible inside and outside the sauna
• Single or dual sensor system
• User profiles
• Additional output switchable up to 3,5 kW or 500 W dimmable (for infrared heater, for example, or infrared heater panels)
• Optional: Additional output control panel
• Optional: WiFi capable in connection with the "BUS-CON-D" and "S-WIFI01" as well as door sensor system or switch-off rocker capable for WiFi use
• PRO D BUS converter for RS 485 connection for house bus systems

Advantages

• Energy-efficient electronics
• Digital and precise-to-the-minute time preset
• Digital temperature preset and temperature display
• Remote start via potential-free contact
• Eco mode

Technical Specifications

• Maximum switching load of the heating system: 10,5 kW
• Light and fan switchable and dimmable (max. 100 W)
• Heating time limit can be raised for commercial use (6/12/18/24 h)
• Connection for safety devices or door monitoring
• Status output
• Connection of an additional power booster (required for electric heaters with outputs of more than 10,5 kW)
• Standard features of delivery: Power unit Protection class IPX4
• Power unit featuring a protection class IP65 housing (protection against jets of water)
