CONTROL UNIT HARVIA XENIO CX110C COMBI WIFI, CX1104CXW

CONTROL UNIT HARVIA XENIO CX110C COMBI WIFI

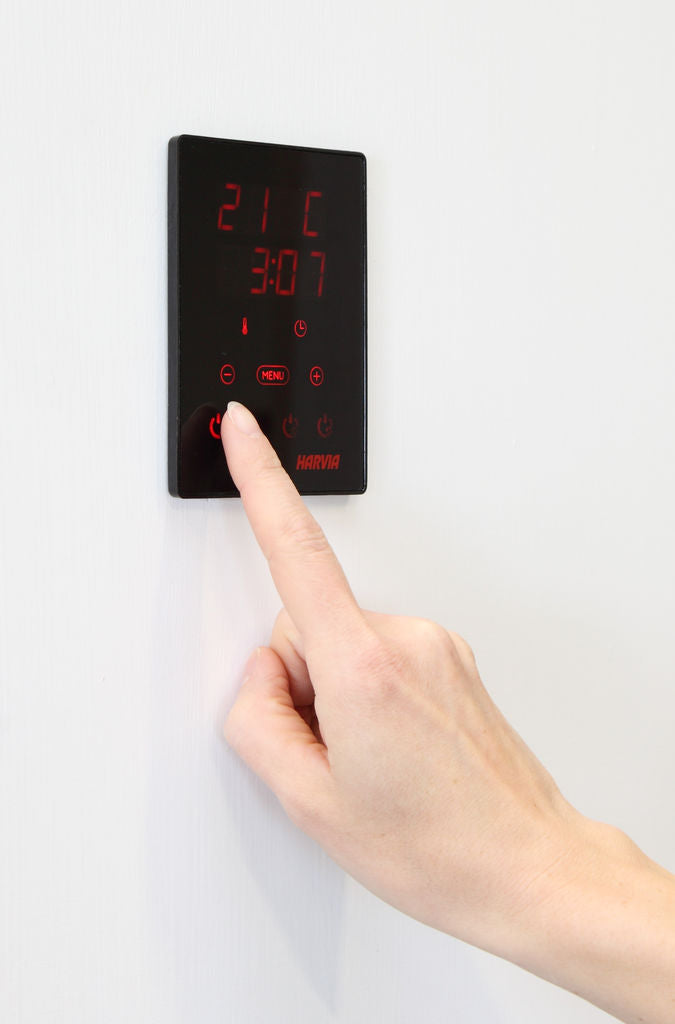

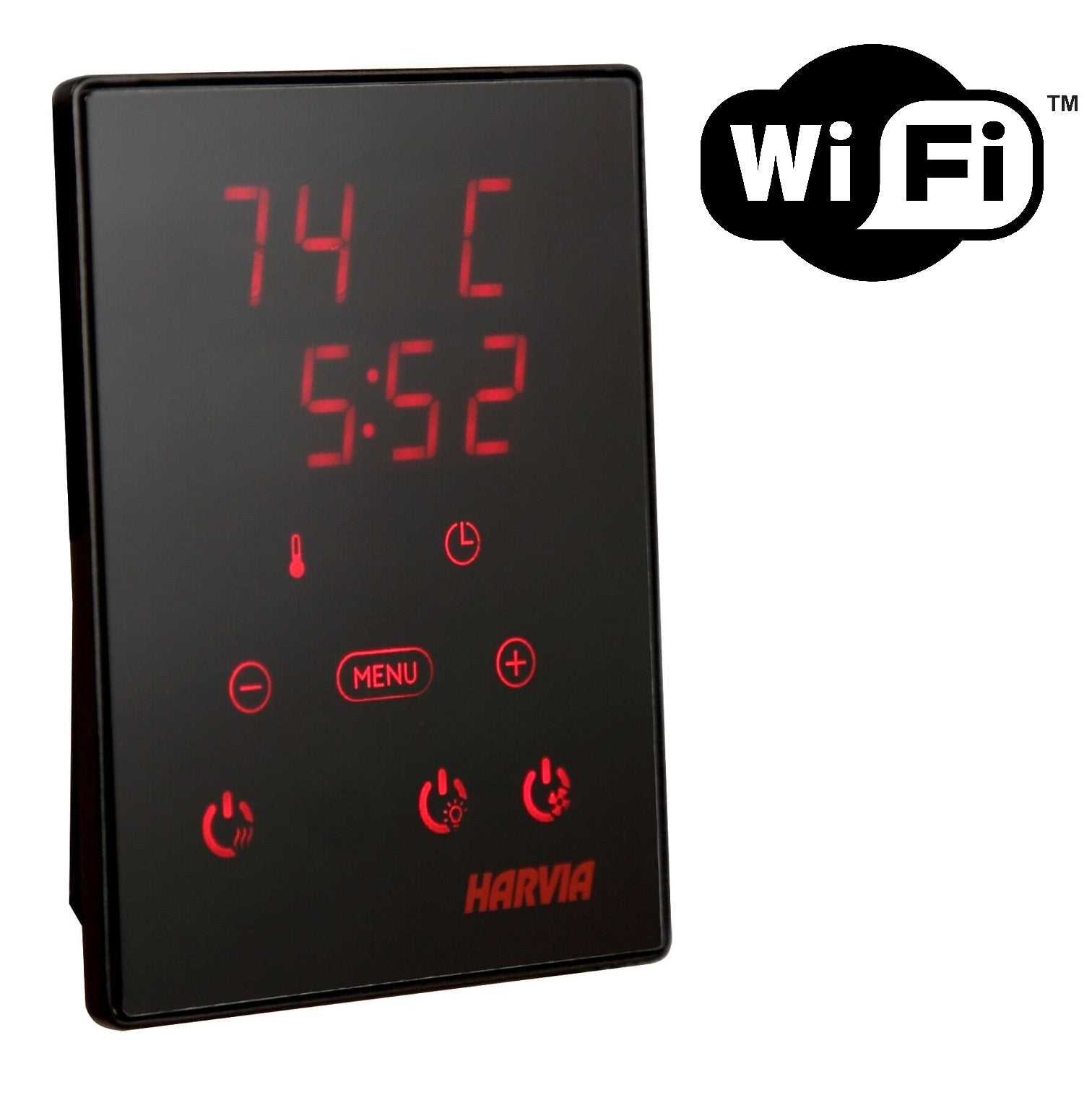

Harvia Xenio CX110C Combi WiFi is an intelligent touch-screen control unit for saunas with a steamer and Combi heaters, enhanced with Wi-Fi remote control capability. This solution combines precise temperature and humidity control, lighting and ventilation management, and full remote access via the MyHarvia mobile app. The touch panel features a sleek black glass design with bright red LED indication. The panel can be installed inside the sauna at a height of no more than 1 meter or in any convenient living space.

Product Features

• Remote control via the MyHarvia mobile app
• Full control of electric heater, steamer, and Combi functions
• Temperature adjustment in the range of 40–110 °C
• Precise humidity setting from 20 to 95 % rH
• Delayed start function up to 12 hours
• Management of integrated sauna lighting and ventilation
• Touch menu with intuitive icons
• Option for surface or flush-mounted installation

Advantages

• Maximum comfort: the ability to prepare the sauna for your arrival via smartphone
• Versatility: support for both standard heaters and steam models
• Safety: real-time remote monitoring of the system status
• Scalability: control of systems up to 28 kW when using additional power units
• Modern aesthetics: premium glass design is perfect for high-end interiors
• Simplicity: combining all microclimate control functions into one device

Technical Specifications

• Power supply: 400 V 3N~
• Maximum power: standard heater up to 11 kW, Combi up to 17 kW (up to 28 kW with LTY17C)
• Peripheral control: lighting and ventilation up to 100 W (230 V 1N~) each
• Control panel dimensions: 85 × 24 × 110 mm

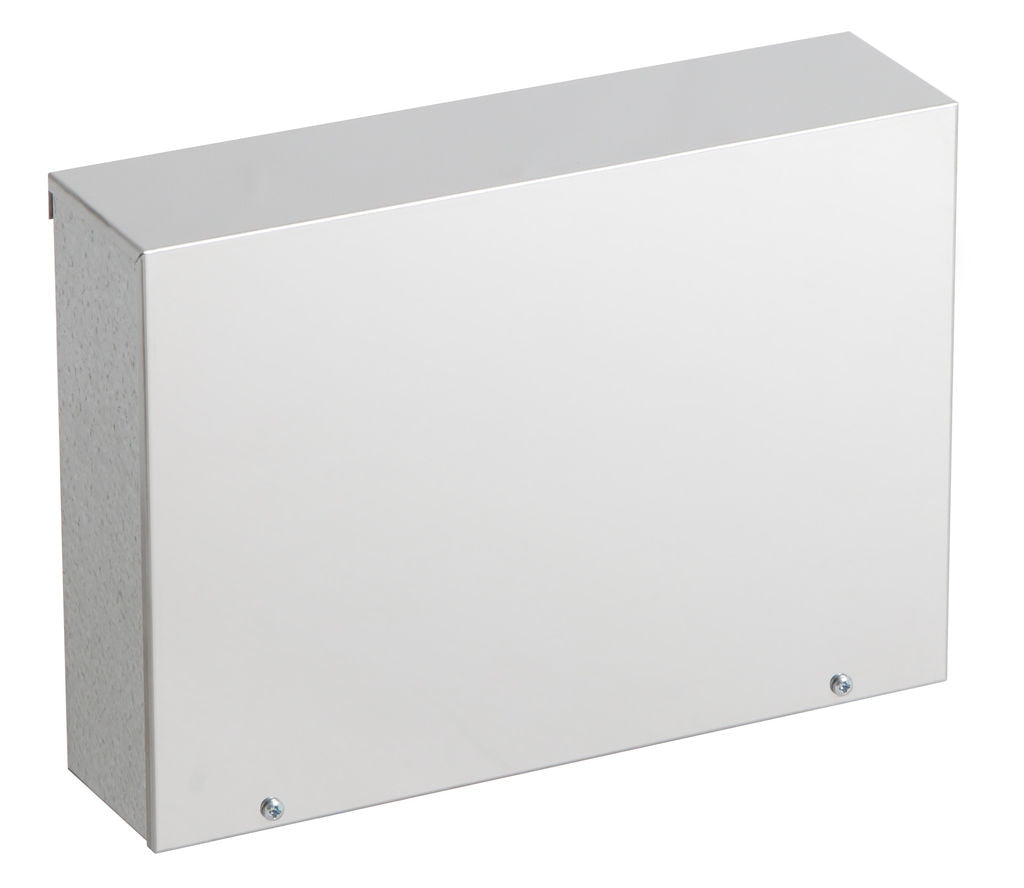

• Power unit dimensions: 272 × 70 × 193 mm
• Sensors included: WX232 temperature sensor and WX325 humidity sensor
• Sensor cable length: 4 m
• Control cable length: 5 m (extendable up to 30 m)

Application

The Harvia Xenio CX110C Combi WiFi controller is designed for private apartments, home SPA areas, and commercial saunas without a weekly timer requirement. It is ideal for projects requiring a modern level of automation and remote access. Wi-Fi functions require an internet connection at the power unit installation site and the installed MyHarvia app.

Result

You get a fully manageable sauna — from dry Finnish heat to soft wet steam — with the ability to set it remotely. The sauna climate becomes stable, settings are repeatable, and the use of the equipment is as convenient and technological as possible.

Ideal for

• owners of Combi heaters or systems with a separate steamer
• those who value the ability to manage their home via smartphone
• projects requiring precise humidity level regulation
• premium interiors where every design detail matters
