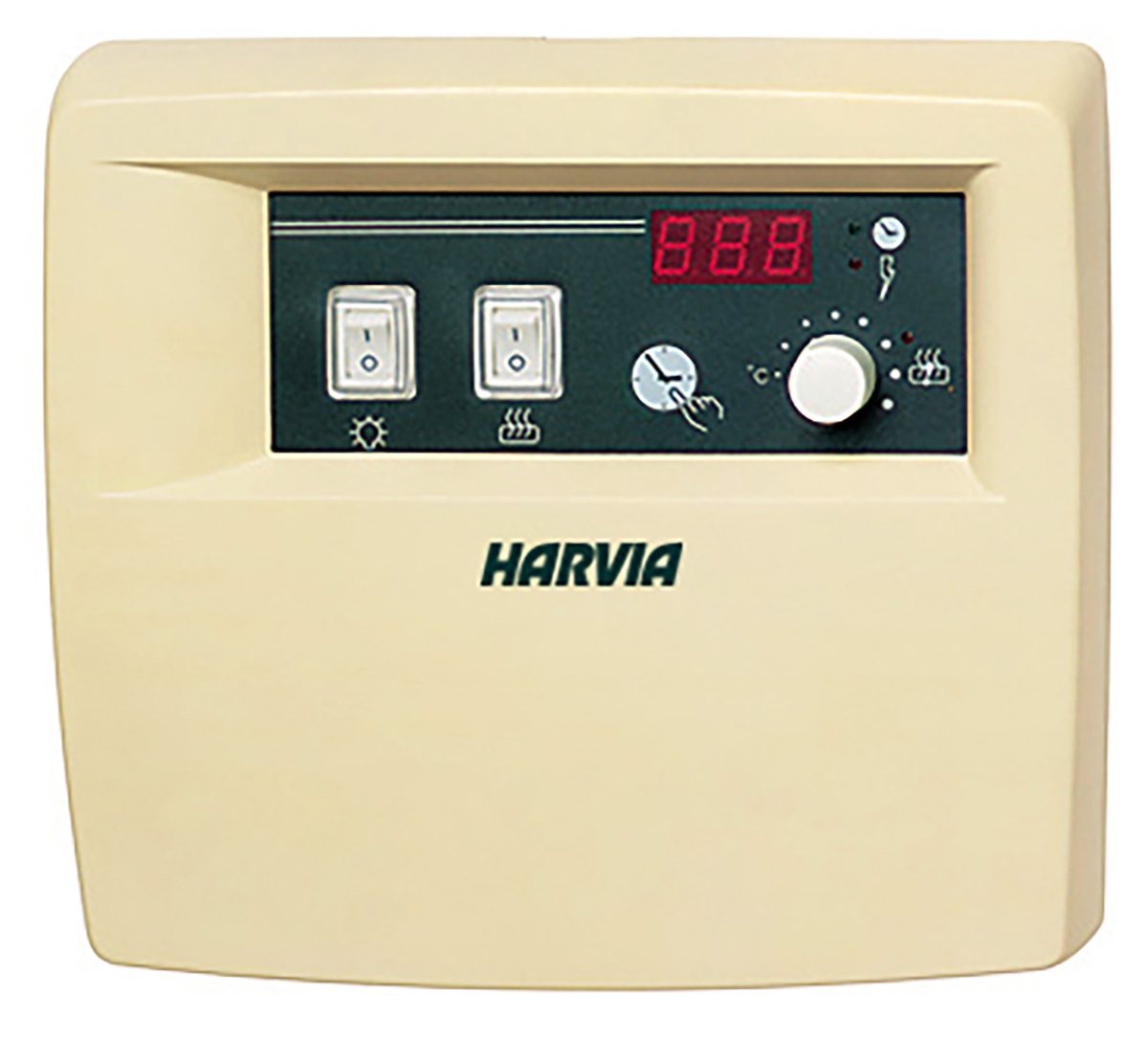

CONTROL UNIT HARVIA C90, C090400

HARVIA C90 (C090400) – Digital Control Unit for Saunas 3–9 kW

The Harvia C90 control unit is a reliable and simple solution for controlling electric heaters with a power output of up to 9 kW. It provides precise control over the sauna's temperature and operating time, allowing you to create comfortable conditions with the press of a button. Thanks to its digital display and thoughtful design, the control unit is convenient for both private and commercial saunas.

Product Features

• Digital display showing the current temperature (up to +125 °C).
• Temperature adjustment in the range of +40 °C to +110 °C.
• Adjustable continuous operating time from 1 to 12 hours.
• Delay start function from 0 to 12 hours – convenient for preheating at a specific time.
• Reliable external temperature sensor, approximately 4 m long.
• Compact dimensions and simple wall mounting.

Advantages

• Precise temperature: ensures stable and even heating in the steam room.
• Convenient control: the digital interface allows easy setting of desired parameters.
• Safety: built-in overheat protection and a high-quality temperature sensor.
• Flexibility: suitable for electric heaters with a power output of 3–9 kW.
• Functionality: possibility of automatic start and stop.

Technical Specifications

• Temperature range: +40 … +110 °C
• Display limit: up to +125 °C
• Heater power: up to 9 kW
• Operating time: 1 – 12 h
• Delay start: 0 – 12 h
• Dimensions (W × H × D): 250 × 223 × 70 mm
• Weight: 1.2 kg
• Included: control unit and temperature sensor (cable length ~ 4 m)
