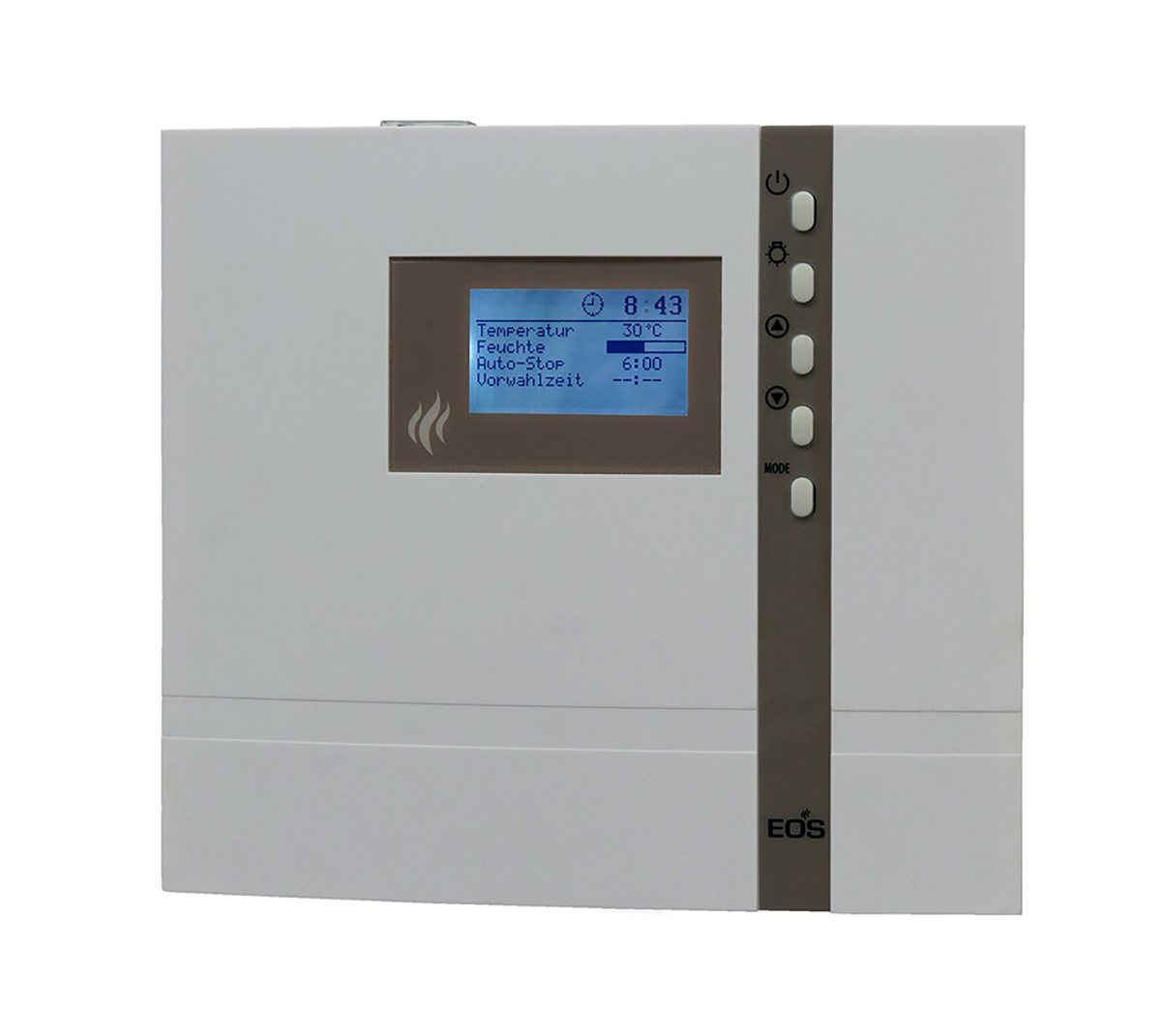

CONTROL UNIT EOS ECON H2

EOS ECON H2 – Sauna Control Panel

EOS ECON H2 is an updated controller by EOS (Germany) for electric heaters and models with humidity control. It delivers precise control of temperature, operating time and humidity, combining convenient digital handling with solid safety features.

Key Features

• For heaters up to 9 kW (up to 36 kW with power extender)
• Supports dry and humid sauna modes
• Temperature range: 30–70 °C (humid) / 40–115 °C (dry)
• Safety limiter: 139 °C
• Operating time: up to 6 h (extendable to 12 h)
• Digital readout of temperature and time
• Supply: 400 V 3N AC 50 Hz
• Dimensions: 250 × 220 × 60 mm
• Weight: 2 kg

Benefits

• Universal control for dry/humid operation
• Works with high-power heaters via extender (up to 36 kW)
• Clear digital display of all parameters
• Overheat protection
• Compact, reliable build

Applications

Controls electric and combi heaters in home and commercial saunas that require flexible modes and higher power capability.

Result

Accurate, safe control of temperature and humidity with compatibility across different heater power classes.

Ideal For

• Home saunas up to 9 kW
• Commercial/SPA up to 36 kW (with extender)
• Users prioritizing versatility and reliability
