Electric Sauna Heaters
- Stylish and eye-catching design
- Mild and long-lasting steam
- Control with mobile app

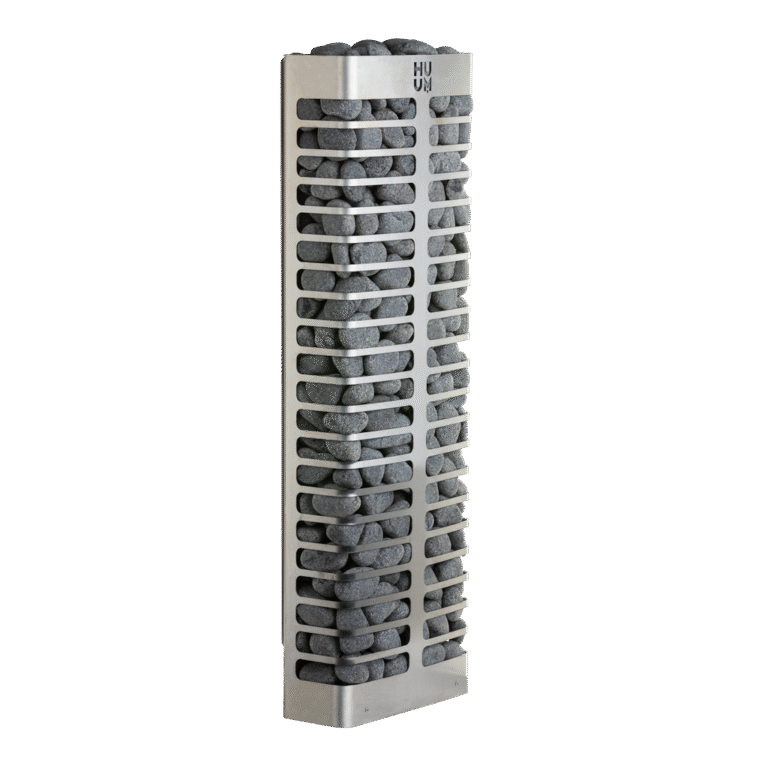

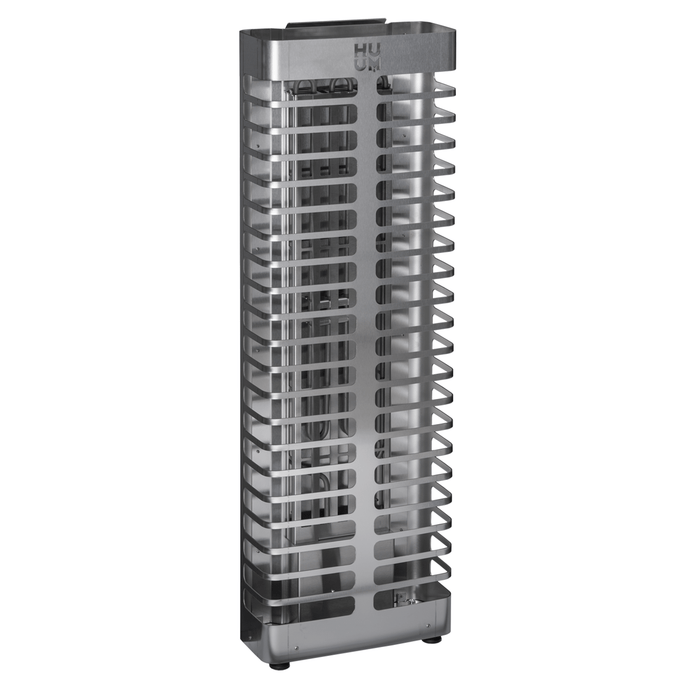

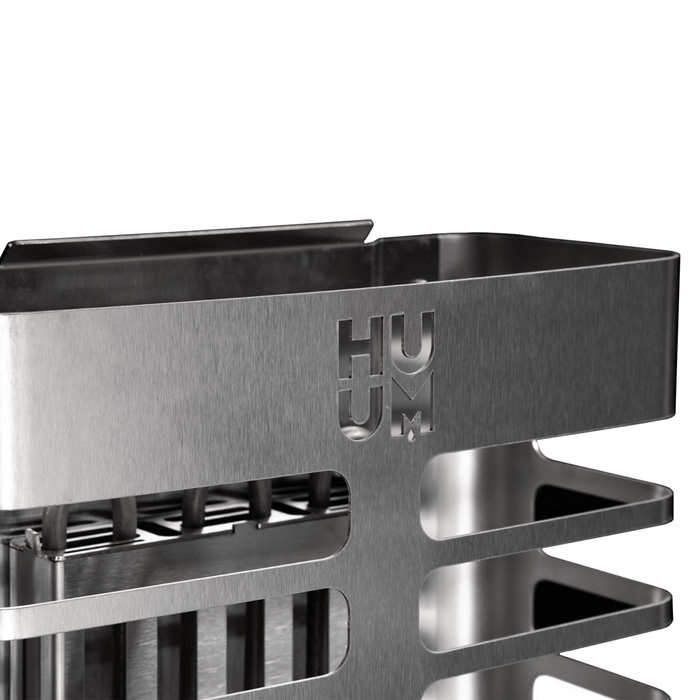

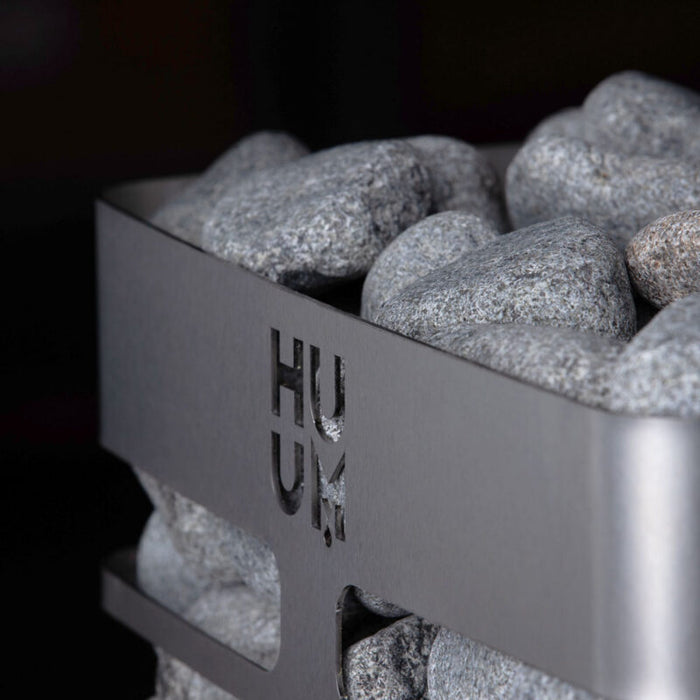

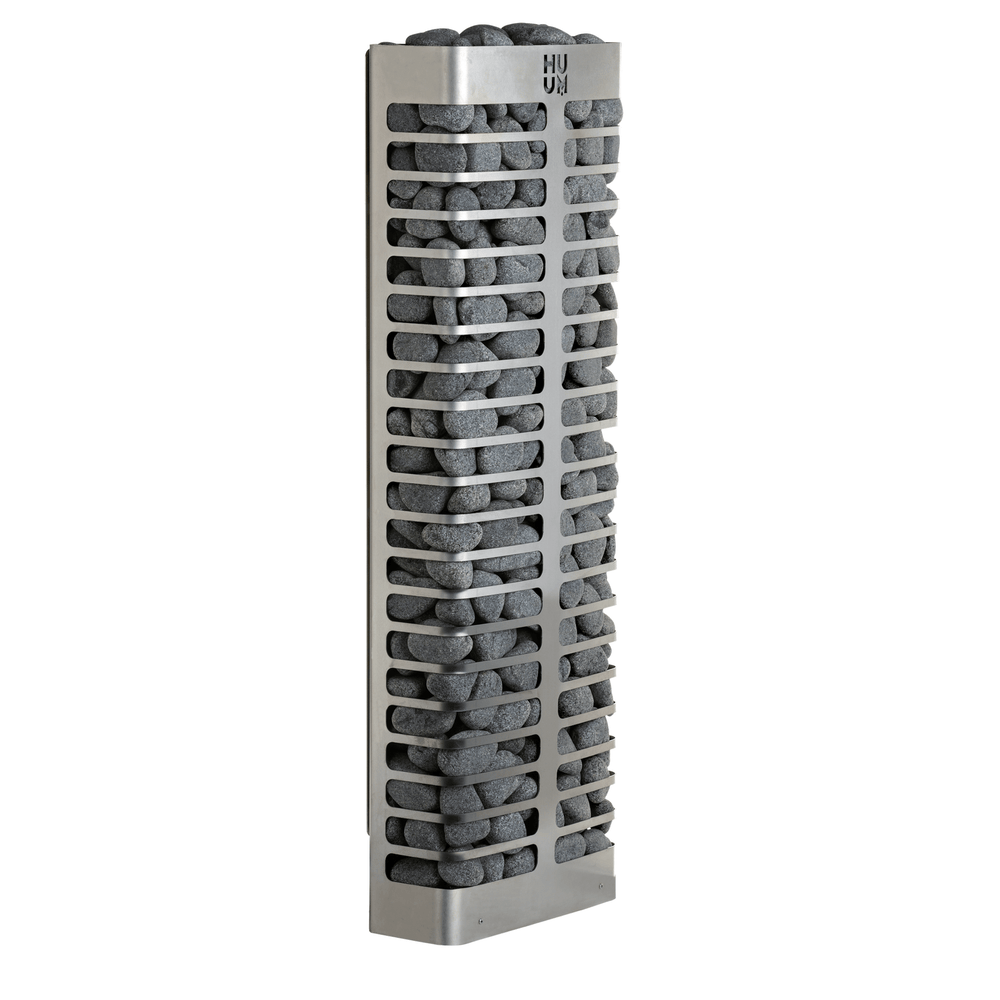

STEEL Mini electric sauna heater is the perfect choice for those who want a powerful and efficient sauna heater for their compact home sauna. Its sleek and slim design allows for easy wall mounting, and the short safety distances make it suitable for even the smallest steam rooms. The built-in air tunnel ensures quick heating, and it still holds an impressive 60 kg of sauna stones for gentle and long-lasting steam. Plus, the elegant stainless steel enclosure adds a touch of modern style to any sauna.

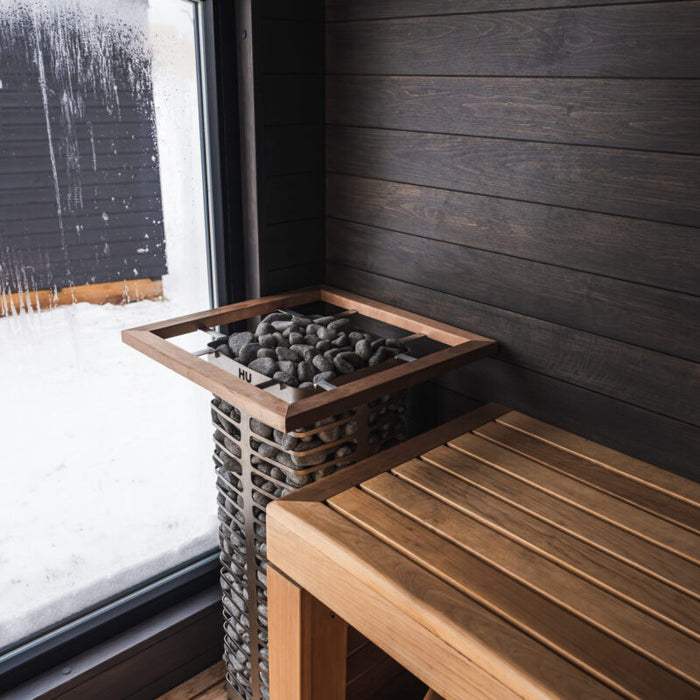

We strongly recommend including a safety railing in your sauna—either a custom design from your builder or our HUUM safety railing—for enhanced safety and comfort.
Specification
Models
STEEL Mini 4
Heater
- Power rating3,5 kW
- Steam room min3 m³
- Steam room max5 m³
- Holding capacity of sauna rocks60 kg
- Weight14,5 kg
- Height975 mm
- Width310 mm
- Depth160 mm
Connection
- Fuse16 A
- Supply voltage, 1-phase1/N~230V
- Power cable (N x mm²)3 x 2,5
230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

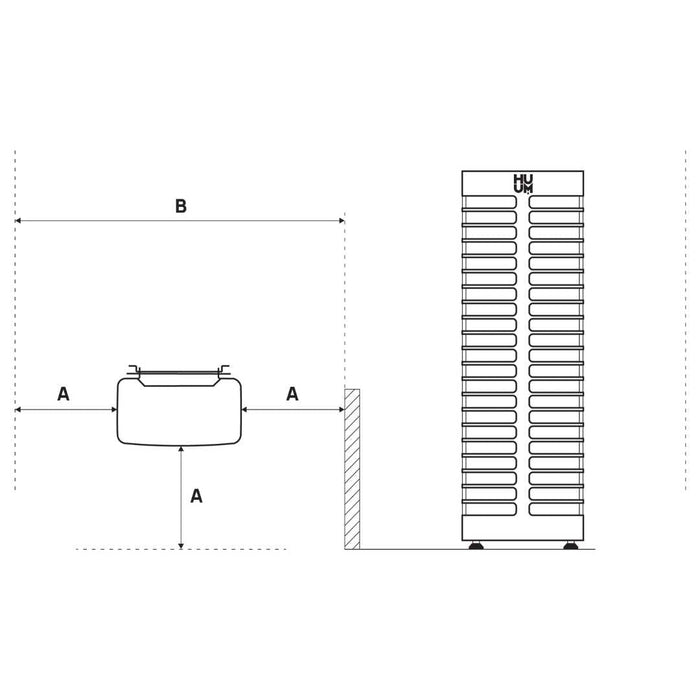

Safety distances
- A50 mm
- B420 mm
- C310 mm
- D160 mm
- H975 mm
The set includes
- electric sauna heater
- adjustable legs
Heater aditionally needs
- UKU sauna control system
- 60 kg of sauna rocks with a diameter of 3–5 cm
- Heat-resistant power cable
- The UKU control system set already includes a black plastic control panel CLASSIC Black.
