Balboa BP10 PCB | Spa & Swim Spa Control Board
Balboa BP10 PCB | Spa & Swim Spa Control Board
🔄 Free Returns – 30-Day Window (Sale Items Final)
🥇 All Products Comprehensive Warranty
🔒 Secure Checkout – SSL Encrypted
💳 0% Finance Available*

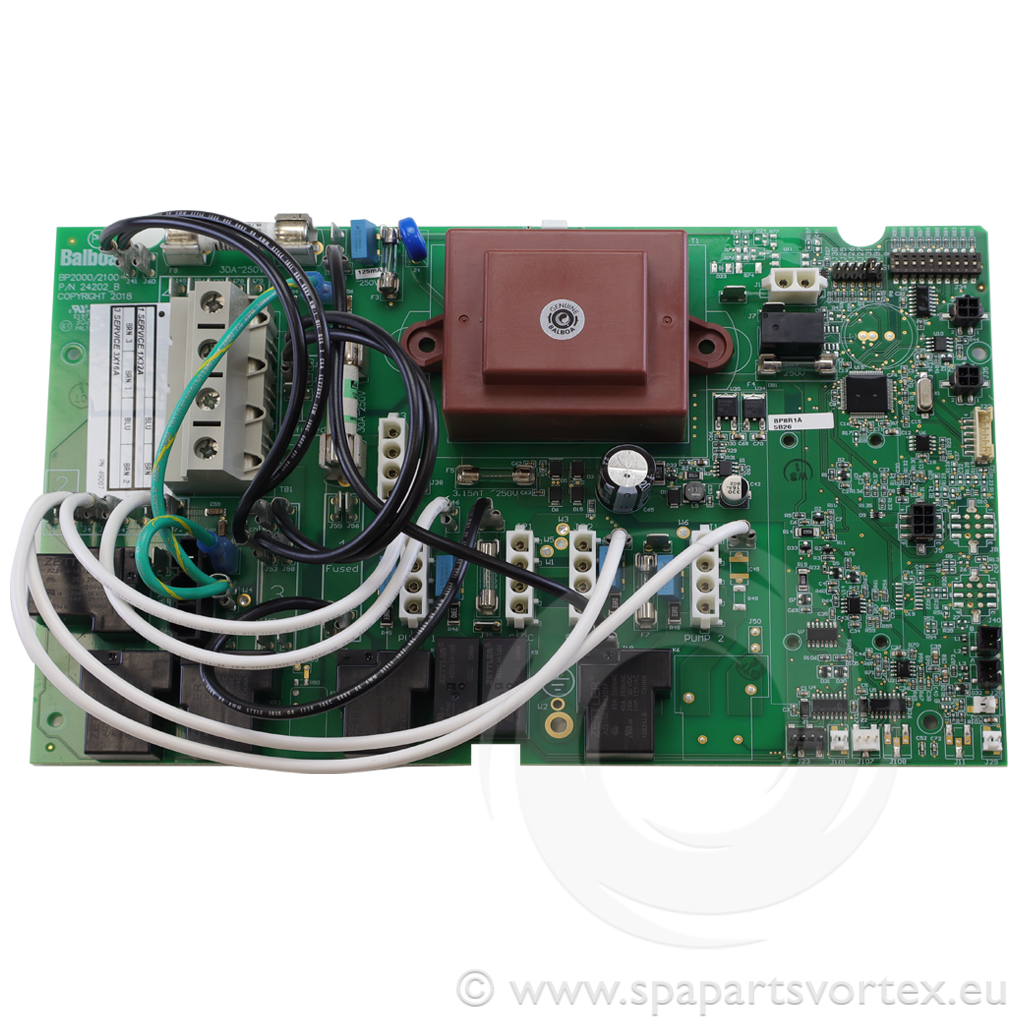

The Balboa BP10 PCB is a genuine, advanced control board built for larger spa and swim spa setups. It replaces both the discontinued Balboa BP214PBC (4 pumps + blower + circulation pump) and BP21MS3B (3 pumps + blower + circulation pump + Microsilk pump) boards, combining their functionality into a single PCB that covers all BP214PBC and BP21MS3B applications.
- Combines BP214PBC and BP21MS3B functionality into one board
- Supports a circulation pump plus up to four additional pumps
- Pumps 1 and 2 offer single- or dual-speed operation; pumps 3 and 4 are single-speed
- Single-speed air blower support (only possible if Pump 2 is single-speed)
- 3kW heater support, 1 ozone connection, 1 x 10V light output, CHZ 230V AV connection
- Dimensions: 280mm (L) x 150mm (W); Power: 230V, 50Hz
- Genuine replacement for two discontinued Balboa boards in a single, current part
- Supports complex spa and swim spa configurations with multiple pumps and features
- Comprehensive connectivity covers lighting, ozone and AV in one board
- Direct compatibility with existing BP214PBC and BP21MS3B setups simplifies replacement
| Brand | Balboa |
| Model / Series | BP |
| Product Type | PCB |
| Length | 280 mm |
| Width | 150 mm |
| Circulation Pump | Supported |
| Pump 1 / Pump 2 | Single or dual-speed |
| Pump 3 / Pump 4 | Single-speed |
| Air Blower | Single-speed (requires Pump 2 single-speed) |
| Heater | 3 kW |
| Ozone | 1 connection |
| Light | 1 unit, 10V |
| AV | CHZ 230V connection available |
| Power Supply | 230V, 50Hz |
Fit the BP10 PCB as a direct replacement for a Balboa BP214PBC or BP21MS3B board in compatible spa or swim spa systems, connecting pumps, blower, heater, lighting and AV equipment as per your original configuration. Installation should be carried out by an experienced tradesman or competent individual, as incorrect fitting could damage the board and invalidate the warranty.
Balboa is a leading manufacturer of spa control systems used across a huge range of hot tub and swim spa brands worldwide. The BP10 reflects Balboa's approach to consolidating discontinued boards into capable, forward-compatible replacements, giving you a genuine long-term solution rather than a discontinued or generic part.
- Keep the board dry and protected from moisture ingress
- Have connections and wiring inspected periodically by a qualified electrician
- Avoid handling the board with wet hands or in damp conditions
- Store spare boards in a dry, dust-free environment if not fitted immediately
