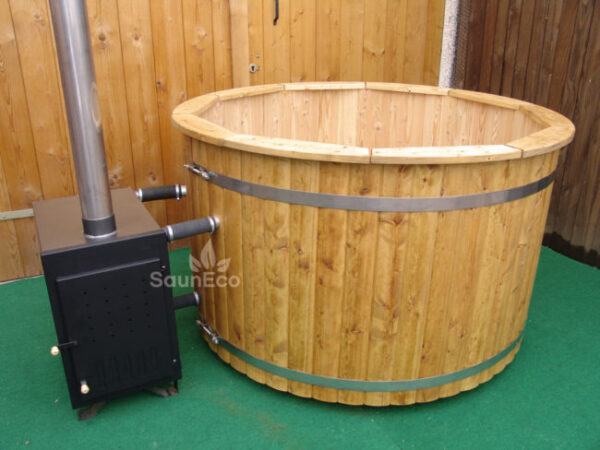

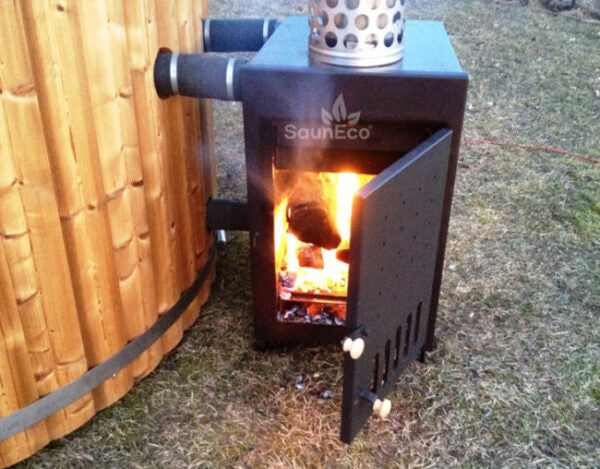

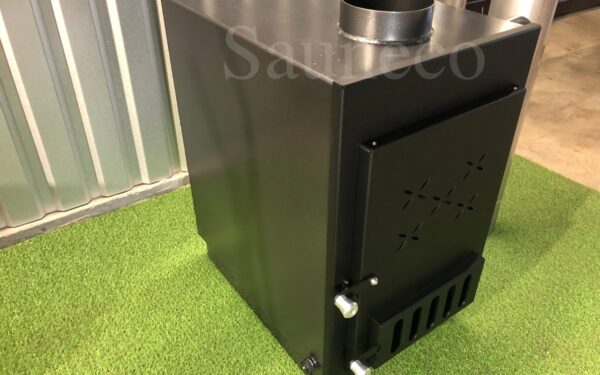

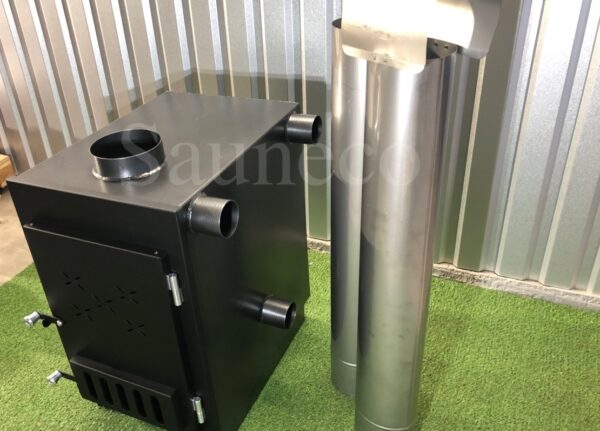

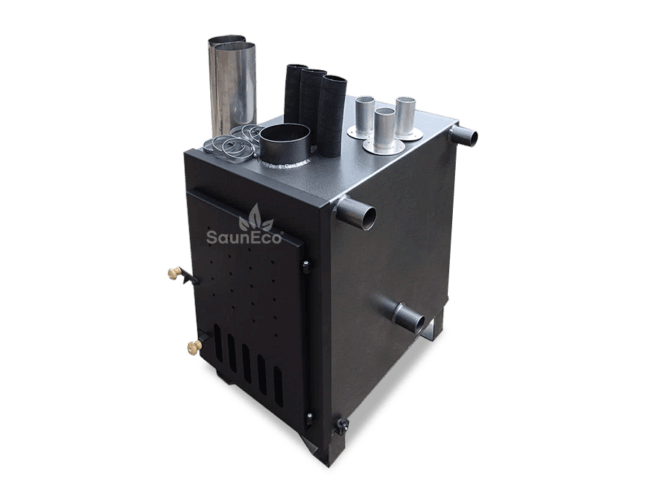

This external hot tub heater is suitable for hot tubs up to 7.87 ft (240 cm). The stove is equipped with a 6.56 ft (2 meter) long chimney. The chimney consists of two parts.
The water circulates between the stove and the tub using the principal of thermosiphon (the movement created by rising hot water). This eliminates the need for a circulating pump or electricity.
Delivering time: ca 5 days
Details:
Model: Ignis-V50-RV
Type: Wood-fired
Material: Stainless steel
Width: 435 mm (17,13 inches)

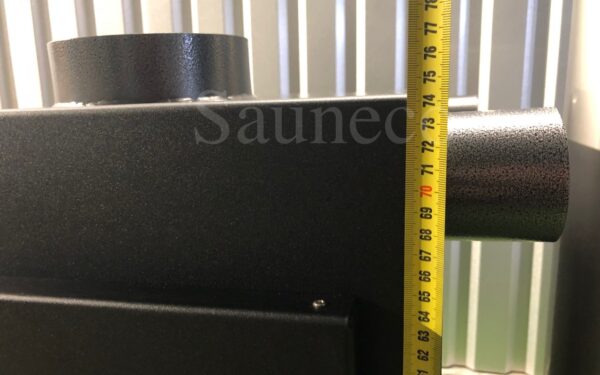

Height: 750 mm (29,5 inches)
Length: 600 mm (23,6 inches)
Weight: 44 kg (97 lb)

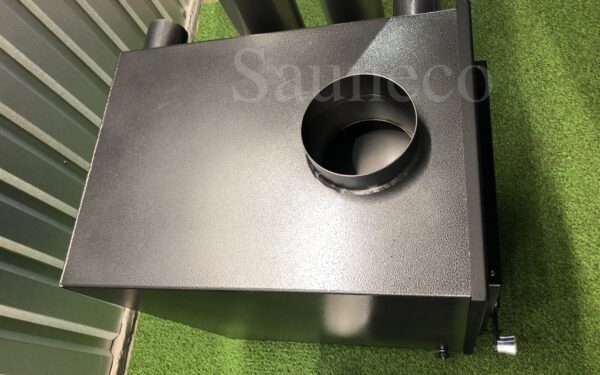

Chimney: 2000 mm (stainless steel)
Power: 50 kW

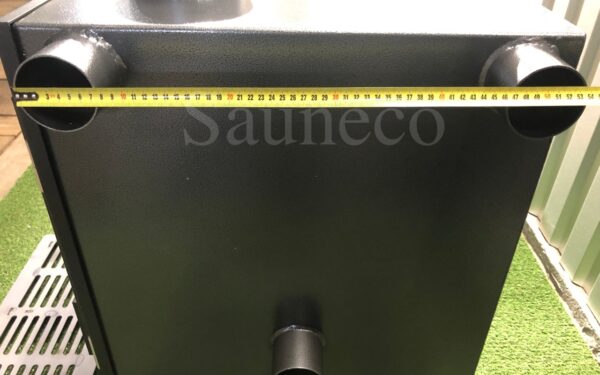

Diameter of tubes: 75 mm (2,95 inches)

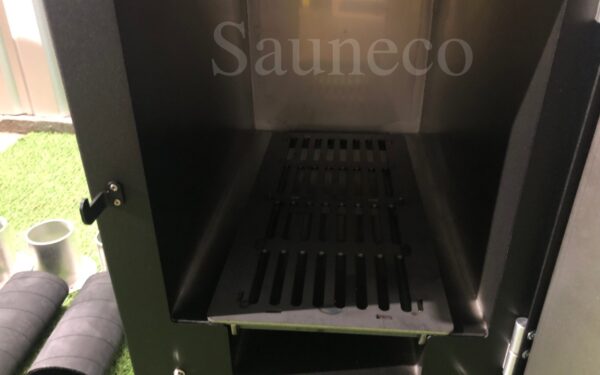

Chamber dimensions:
Length: ca 550 mm (21,6 inches)
Width: ca 330 mm (12,99 inches)
Height: ca 380 mm (14,9 inches)
Quality
All stainless steels have a high resistance to corrosion. Low alloyed grades resist corrosion in atmospheric conditions; highly alloyed grades can resist corrosion in most acids, alkaline solutions, and chloride bearing environments, even at elevated temperatures and pressures.
High-quality MIG welding ensures the perfect end result. We check and test impermeability of all welded seams.
Important!
It’s strictly forbidden to start the heating before the hot tub is not filled with water.
The pipes which connect the hot tub and the stove must be under the water before it’s allowed to start the heating. Otherwise the stove will be damaged.

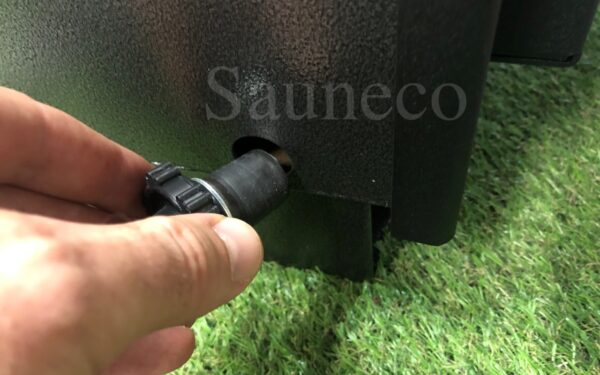

The stove has also a small water tap under it and in winter time when the temperature is already -1 degree you should empty your stove as well after bathing, otherwise the water may freeze and this may damage the stove.
Additional information
| Weight | 44 kg |
|---|---|
| Dimensions | 60 × 43.5 × 75 cm |
| Model |
Ignis-V50 |
| Type |
Wood fired |
| Power |
50 kw |
| Material |
Stainless steel |
| Chimney |
6.56 ft (stainless steel) |
| Chamber dimensions |
Length: ca 21.6 in. Width: ca 12.99 in. Height: ca 14.9 in |
| Diameter of tubes |
2.95 in |
Shipping Info
Delivering time: ca 5 days
Shipping Costs for External Hot Tub Stove
All prices on our website include all taxes, customs fees and shipping costs to the UK mainland.
The hot tubs up to 2 meters will be delivered as fully assembled to the kerbside by a 3rd party shipping company.
All bigger hot tubs and all saunas will be delivered as fully assembled with a big 40 ton truck (arctic truck) by a 3rd party shipping company and the unloading must be organized on site with a crane, forklift, tractor etc. The delivery location should be easily accessible for such a large truck.
We will inform and give the estimated time of arrival of the goods. The shipping company will also call before their arrival to agree the delivering time so the unloading would go smoothly.
